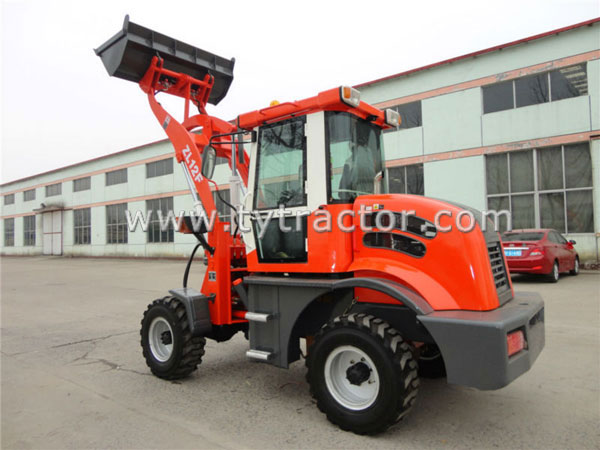

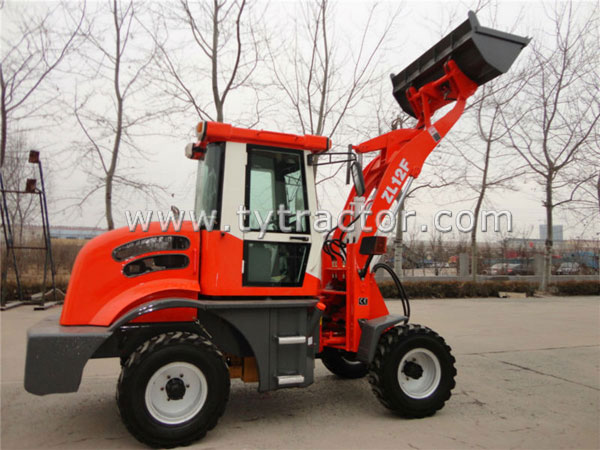

ZL12 Wheel Loader
  • ZL12 Wheel Loader
  • 1200kg Wheel Loader
  • 1.2 ton Wheel Loader
  • ZL12 Wheel Loader Bucket

ZL12 Wheel Loader, 1200KG Wheel Loader Manufacturer

Go back to Catalog: Wheel Loader

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

Contact Us
ZL12 Wheel Loader Series
1.0 Engine Details
Model: Xinchai 490 Engine(Euroiii and EPA Certificate)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g /kw. H
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)

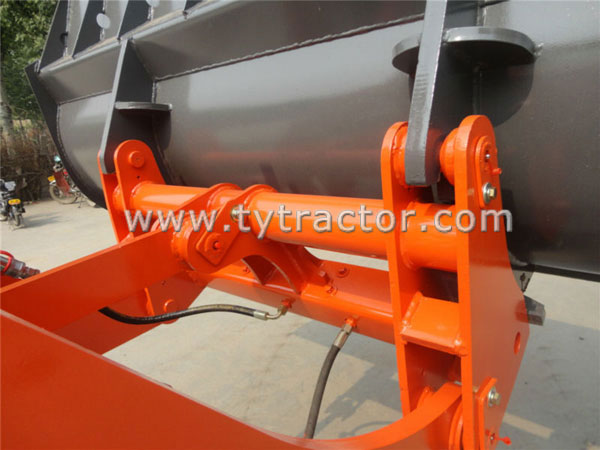

3.0 Bucket
(1) Bucket Capacity: 0.6 m3 (2) Bucket width: 1800mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 1200kg
(5) Operating Weight: 3300kg
4.0 Overall Dimensions
(1) Overall Length (Bucket on ground position): 4750mm
(2) Overall Height:2700mm
(a) Ground to Cab Top: 2500mm
(b) Dumping Height: 2600mm
(c) Min. Base to the Ground: 230mm
(3) Overall Width: 1730mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 3900mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Tyre: 12.00-16

Pallet Forks
Snow Bucket
Quick Hitch
Hydraulic Snow Blade
12-16.5 Tyre
Snow Blower
14-17.5 Tyre
Tyre Chain
31.5×15-15 Tyre
Hydraulic Line(per one more)
Adjustable Pallet Forks
4 in 1 Bucket
Grapple Forks/Wooden Forks
Drum Folder/Barrel Clamp
Grapple Bucket
Mixer Bucket
Electric Joystick

E4 Lamp
Floating Function
New Wooden Forks
Varta Anti-freeze Battery
LED Light
Plain bucket
Air condition
