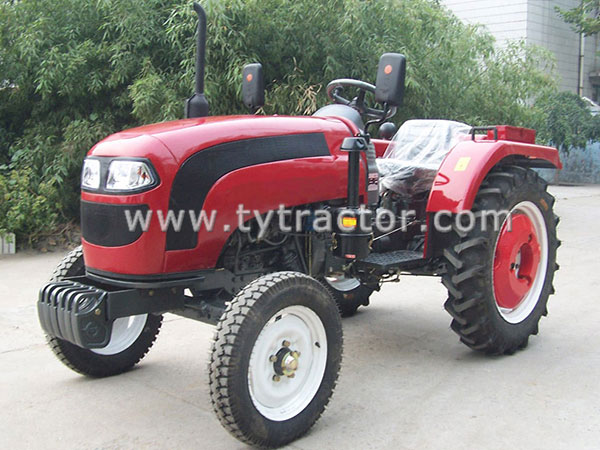

TY Tractor 2WD, Mini Farm Wheel Tractor
Go back to Catalog: TY Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
TY Tractor 2WD Series
| Item | TY180 | TY200 | TY220 | TY250 | TY280 | TY300 | TY350 | |||
| Engine | ||||||||||
| Model | JD290IT | JD295IT | JD2100IT | JD2102IT | LD485 | |||||
| Rated power (KW) | 13.23 | 14.70 | 16.17 | 18.37 | 20.58 | 22.05 | 25.70 | |||
| Complete Parameter | ||||||||||
| Figure size (mm) (L×W×H) | 2600×1650×1500 | |||||||||
| Steering | Mechanical | |||||||||
| Front tyre | 5.0-16 for 2WD, 6.0-16 for 4WD | |||||||||
| Rear tyre | 8.3-24 for 2WD, 9.5-24 for 4WD) | |||||||||
| Transmission | ||||||||||
| Clutch | Dry-friction, single stage | |||||||||
| Transmission box | (3+1)*2 or (4+1)*2 | |||||||||
| Hydraulic pressure raiser | ||||||||||
| P. T. O. | ||||||||||
| Type | Rear positioned, dependent, I 35 type, 6 teeth 540 / 540/1000 or 540/720 | |||||||||
| Spline size | F35 Rectangle spline with 6 teeth | |||||||||
