Self-powered Wood Chipper, Self-Propelled Wood Chippers Logging Equipment For Sale
Go back to Catalog: Wood Chipper

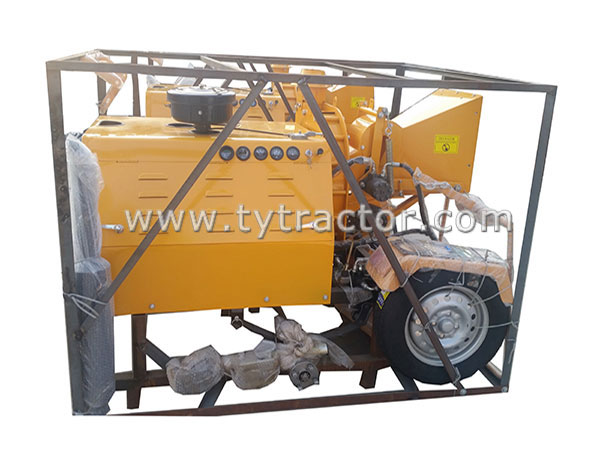

Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Self-powered Wood Chipper Series
DWC-22 TRAILER TOWABLE DIESEL ENGINE WOOD CHIPPER WITH CE APPROVED
Feature:
Changchai brand 50hp engine
Discharge hood can rotate in 360 degrees
Hydraulic feeding system rollers
Low Shock And Noise
High Welding Processes And Surface Quality
Usage:
The small chips made by the wood chipper can be used for animal bedding, for the forestry and
soil protecting, for new energy making, for compost and for charcoal.
Some customers use their colored garden waste chips, cover the soil and made the garden
beautiful; some of them use the garden waste chips in the fireplace.
Parameters:
DWC-22 TRAILER TOWABLE DIESEL ENGINE WOOD CHIPPER WITH CE APPROVED
Feature:
Changchai brand 50hp engine
Discharge hood can rotate in 360 degrees
Hydraulic feeding system rollers
Low Shock And Noise
High Welding Processes And Surface Quality
Usage:
The small chips made by the wood chipper can be used for animal bedding, for the forestry and
soil protecting, for new energy making, for compost and for charcoal.
Some customers use their colored garden waste chips, cover the soil and made the garden
beautiful; some of them use the garden waste chips in the fireplace.
Parameters:
| Trailer Towable Diesel Engine Wood Chipper | |||
| MODEL | DWC-50 | DWC-40 | DWC-22 |
| Max.Dia.of Feeding | 8"(20cm) | 8"(20cm) | 8"(20cm) |
| Engine Model | 495 | 490 | 1115 |
| Engine type | Vertical 4-cylinder,4 stroke diesel engine | Level type single cylinder,4 stroke diesel engine | |
| Engine Power | 36.8kW/50hp | 29.4kW/40hp | 14.7kW/22hp |
| Cooling method | Water circulation | Water circulation | Water circulation |
| Rated Engine Rev. | 2200rpm | 2200rpm | 2300rpm |
| Diameter of Chipper Disk | 600mm | 600mm | 600mm |
| Chipper Disk Rev. | 1025mm | 1025mm | 1025mm |
| Feeding System | Hydraulic Feeding, Adjustable Speed, Stop-Reverse-Forward Function | ||
| Number of blades | 2+1PCS | 2+1PCS | 2+1PCS |
| Chip size | Thickness<4mm | Thickness<4mm | Thickness<4mm |
|
Discharge Chute Rotate Size |
360 | 360 | 360 |
| Gross weight | 850KGS | 800KGS | 700KGS |
| Working Efficiency | 8-15m3/h | 8-13m3/h | 8-11m3/h |
|
Volume of hydraulic Oil tank |
38L | 38L | 38L |
|
Package Size (WXDxH)(mm) |
1800×1100×1250 | 1800×1100×1250 | 1350×1100×1250 |
