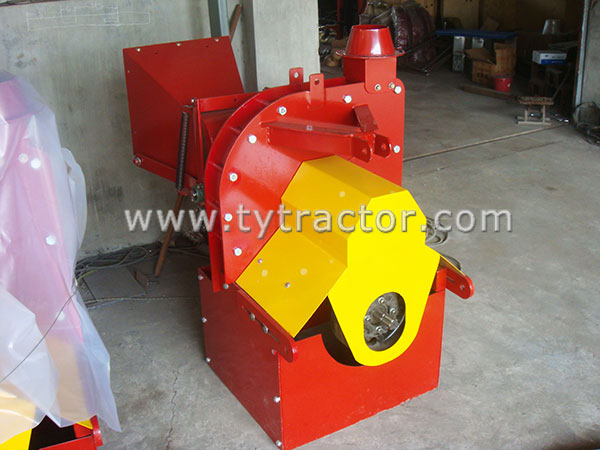

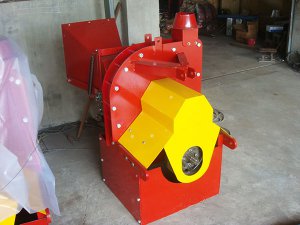

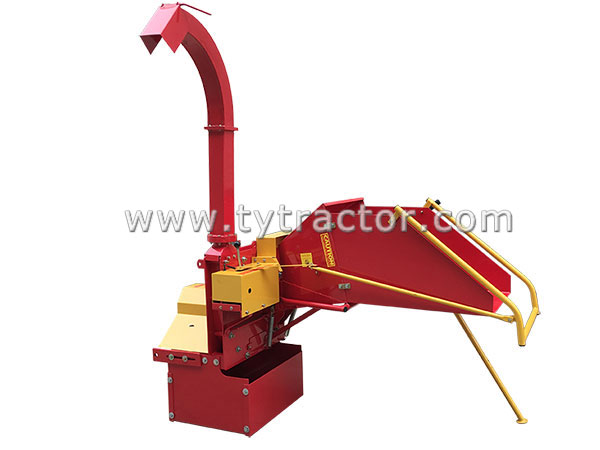

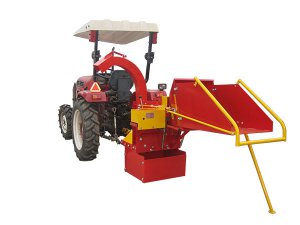

JM-8 Wood Chipper
  • JM-8 Wood Chipper
  • Jinma Wood Chipper Shredder
  • Jinma Wood Chipper
  • Jinma Wood Shredder
  • Jinma Wood Shredder

JM-8 Wood Chipper, Jinma Wood Chipper Shredder

Go back to Catalog: Wood Chipper

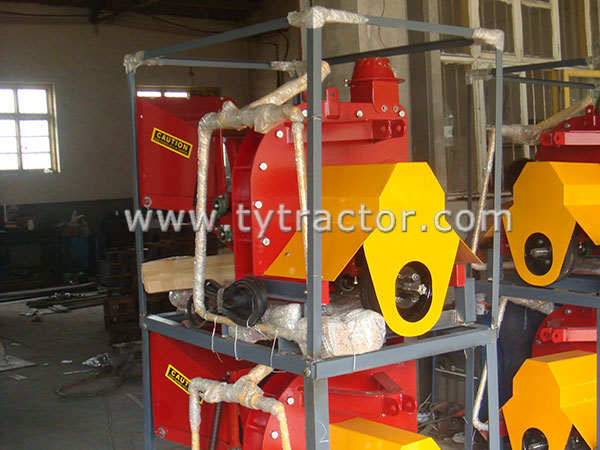

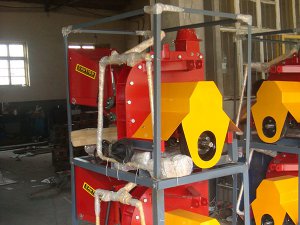

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

Contact Us
JM-8 Wood Chipper Series

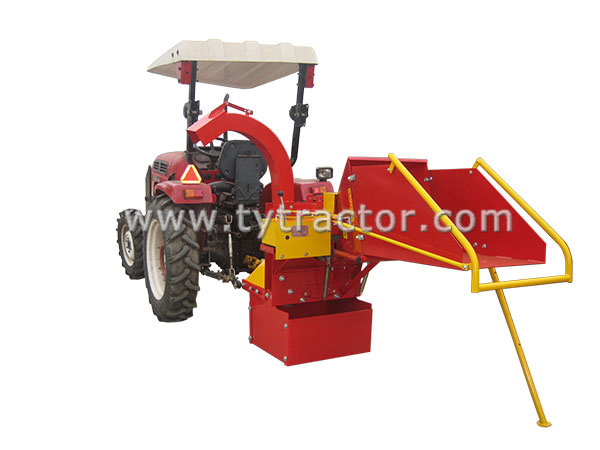

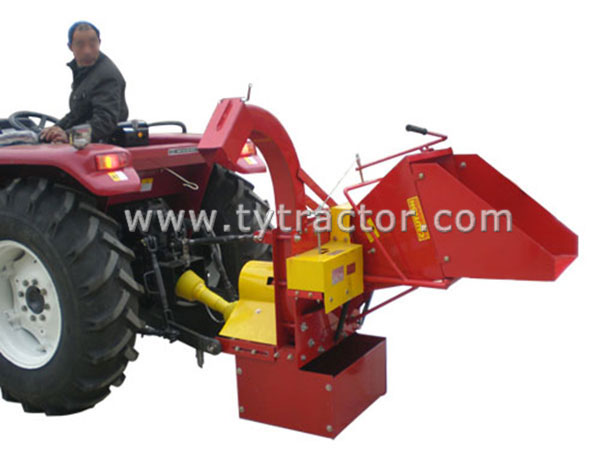

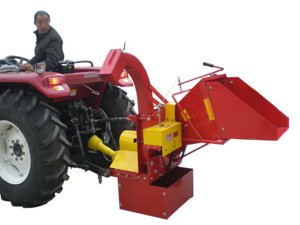

Technical details of PTO driven model Wood Chipper
Model TH- 8 TM- 8
Max. Dia. of Feeding 8''
POWER Tractor (18~100hp, 540/720rpm)
Diameter of Chipper Disk 600mm 600mm
Turning Speed of Chipper Disk 1080rpm/1410rpm
Feeding  System Hydraulic Feeding, Feeding by Worm Reduction
Adjustable Speed, Gear(4mm/s)
Stop-Reverse-Forward Function Only Forward Function
Blade material
 Durable Chromium CR-12

Sawdust  Measurement Thickness<4mm
Rotation Angle of Discharge Spout 360
Weight 450kg(990LBS) 420kg(930LBS)
Working Efficiency 8~9m 3 /h 6~9m 3 /h
Volume of TANK 26L /
PACKAGE DIMENSIONS (L×B×H) 1150×900×1300 (mm) 1150×900×1300 (mm)
20GP/40HC container 22unit/46units 22units/46units
