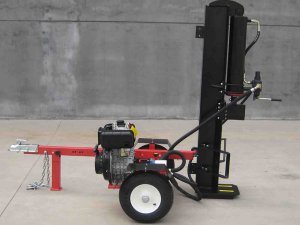

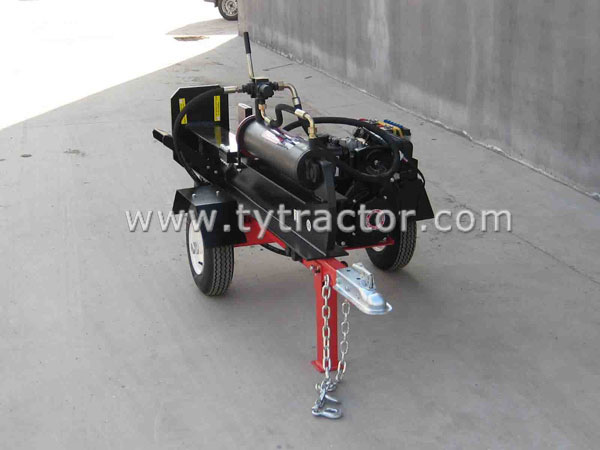

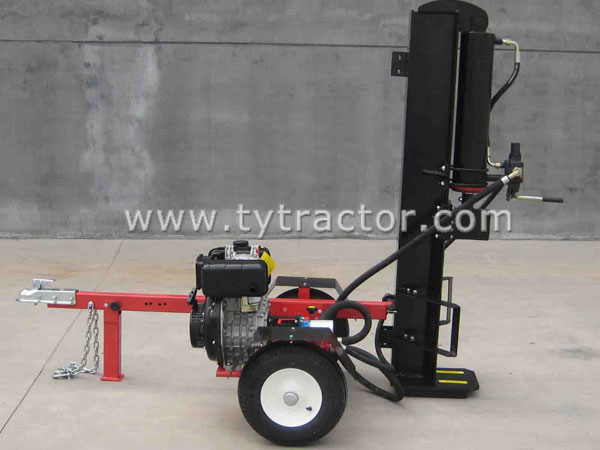

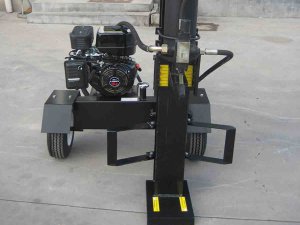

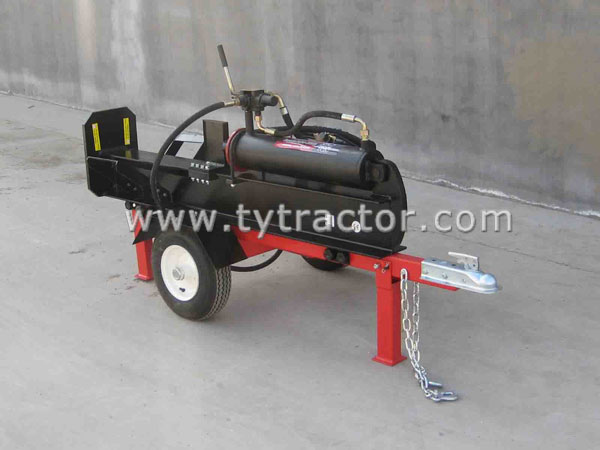

Hydraulic Diesel Log Splitter, Firewood Log Splitter With Log Tray
Go back to Catalog: Log Splitter
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Hydraulic Diesel Log Splitter Series
| Model No. | LWS610-32T | LWS610-37T | LWS610-42T | LWS610-45T |
| Capacity of cutting wood |
Length: 15-61cm Diameter: 15-65cm |
Length: 15-61cm Diameter: 15-75cm |
Length: 15-61cm Diameter: 15-85cm | Length: 15-61cm Diameter: 15-100cm |
| Operation | Horizontal | |||
| Engine | 9hp Petrol | 13hp Petrol | 15hp Petrol | 15hp Petrol |
| Optional | with electric start with battery adds | |||
| Low oil shutdown | YES | |||
| Cycle time(sec) | 11 | 11 | 11 | 11 |
| Automatic cylinder return | YES | |||
| Cylinder size | 4.5'' x24''x1.75'' | 5'' x24''x3.15'' | 5.5"×24''x3.15'' | |
| Pump flow | 16GMP, 2-stage | 22GMP, 2-stage | ||
| Capacity oil(L) | 30.5 L | |||
| Log Lift | Hydraulic | |||
| Wedge Lift | Hydraulic | |||
| 4-Way Wedge | Standard | |||
|
6-Way Wedge |
Optional | |||
| Tire | 16" 6.5-8,4.0-8,4.8-8 | |||
| Battery (12V/36A) | YES | |||
| N.W./G.W. | 400/430KG | 410/440KG | 420/453KG | 430/465KG |
| Container loading: |
Wooden pallets Size:170×60×65cm 36/78PCS Iren palltessize: 186 x57 x56 cm 40/84PCS |
|||
| Warranty | 18 months | |||
