Hay Rake,Hay Tedder, Tractor Tedder, Hay Tedder
Go back to Catalog: Hay Rake
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Hay Rake,Hay Tedder Series

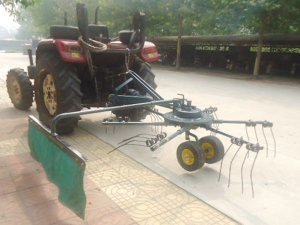

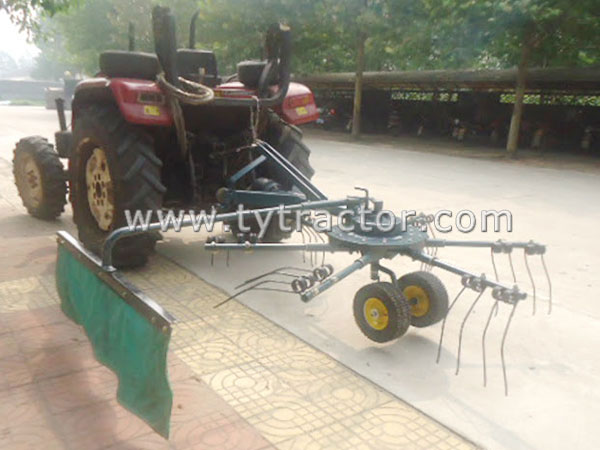

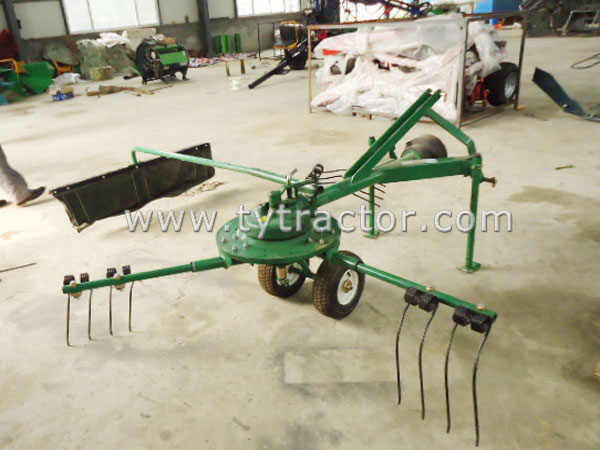

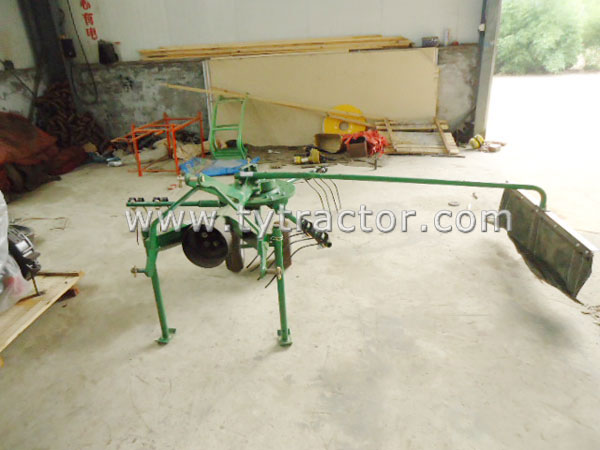

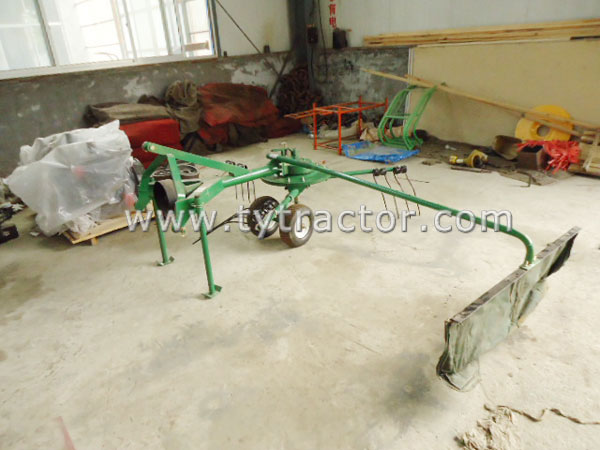

hay tedder with rake and dry machine combination is consist of rack, rotary disk, bracket, regulation handle, wheel and so on. It can complete work of rake, ted and revert.The machine use cam structure to invert the grass by one operation. The machine can ted the grass and rake it to stripe. To make the harvested lucerne dry before bundling and storage, put the crop pave evenly, it’s helpful to Evaporation of water. The tedder side also make the crop to stripe when bundling and storage, improve the working efficiency.
hay tedder with rake and dry machine combination is consist of rack, rotary disk, bracket, regulation handle, wheel and so on. It can complete work of rake, ted and revert.The machine use cam structure to invert the grass by one operation. The machine can ted the grass and rake it to stripe. To make the harvested lucerne dry before bundling and storage, put the crop pave evenly, it’s helpful to Evaporation of water. The tedder side also make the crop to stripe when bundling and storage, improve the working efficiency.
| Model | 9LS-2.5 | 9LS-3.5 | YLLS-5.0 |
|
Working width(m) |
2.5 | 3.5 | 5 |
|
Tedding width(m) |
1.6 | 2.0 | 4.8 |
|
Weight(kg) |
180 | 240 | 600 |
|
(km/h) Working speed |
4-9 | 4-9 | 5--10 |
|
Fitted power(hp) |
18-50 | 50-100 | 50-100 |
