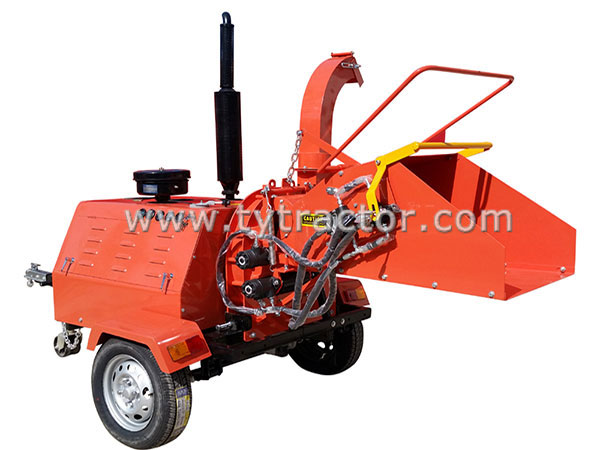

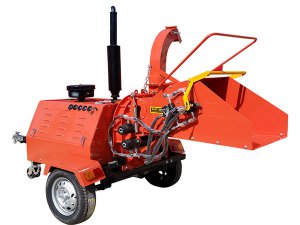

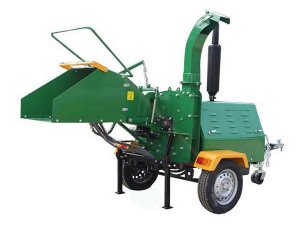

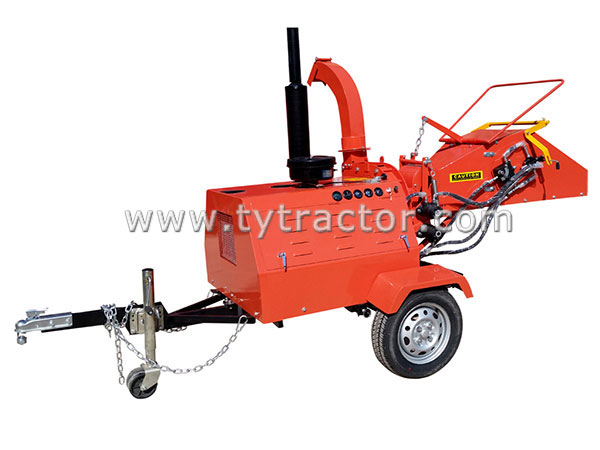

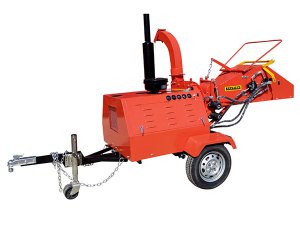

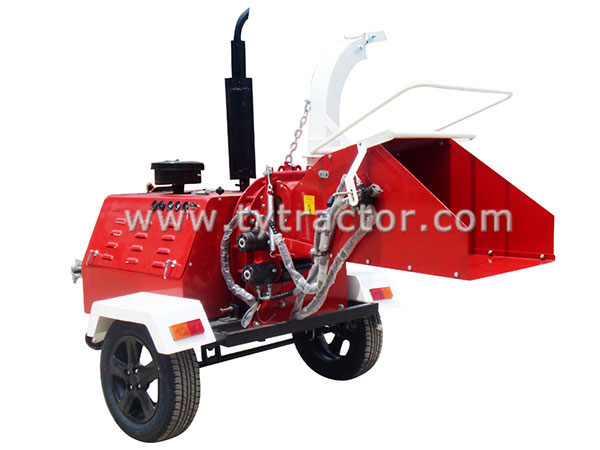

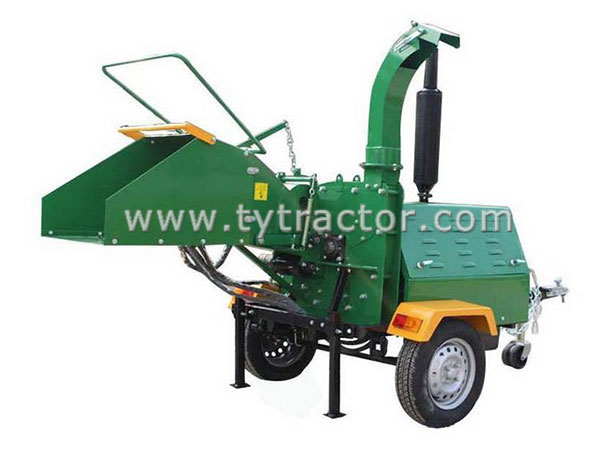

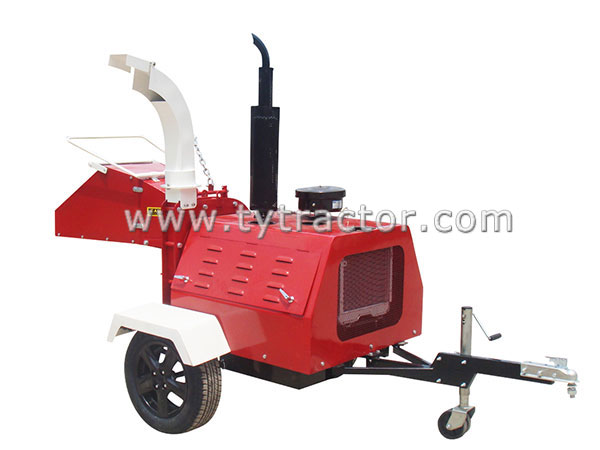

DH30 Wood Chipper, Hydraulic Feeding Wood Chipper

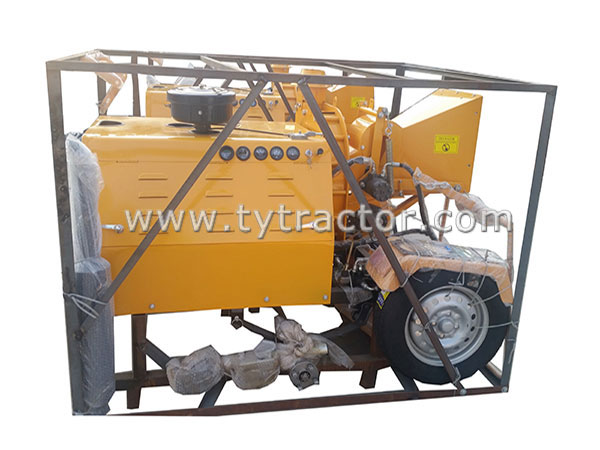

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

Product Detail
Online Inquiry

DH30 Wood Chipper Series
Main specifications of DH-30 30hp Changchai 390Q diesel engine,hydraulic feeding,trailed wood chipper machine with CE for sale

Item	DH30	DH40	DH50
Max. dia. of feeding	8''/200mm	8''/200mm	8''/200mm
Diesel engine model	Changchai 390Q with CE Certificate (30hp, 3 cylinders)	Changchai 490Q with CE Certificate (40hp, 4 cylinders)	Changchai 4L68 with CE Certificate (50hp, 4 cylinders)
Flywheel diameter	600mm	600mm	600mm
Flywheel turning speed	1025rpm	1025rpm	1025rpm
Feeding system	Hydraulic Feeding, Adjustable Speed stop-reverse-forward function	Dual Hydraulic Feeding, Adjustable Speed stop-reverse-forward function	Hydraulic Feeding, Adjustable Speed, stop-reverse-forward function
No.of blades	2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel.	2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel.	2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel.
Sawdust measurement	thickness <4mm	thickness <4mm	thickness <4mm
Feeding outlet rotation angle	360°	360°	360°
Tyre size	155-65R13, tubeless tire	155-65R13, tubeless tire	155-65R13, tubeless tire
Hydraulic oil tank	26L	26L	26L
Working efficiency	8~9m3/h	8~11m3/h	10~14m3/h
Weight	1350 lbs/610kg	1400 lbs/635kg	1650 lbs/750kg
Packing size	1750×1450×1350	1750×1450×1350	1780×1500×1350
Delievery date	Within 25 days	Within 25 days	Within 25 days
