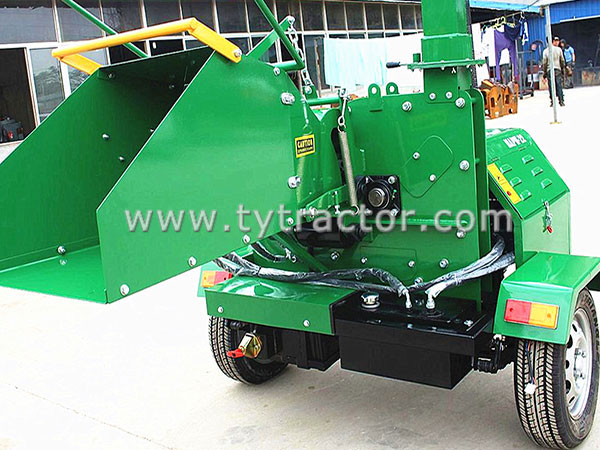

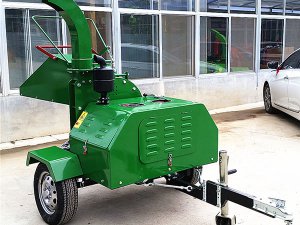

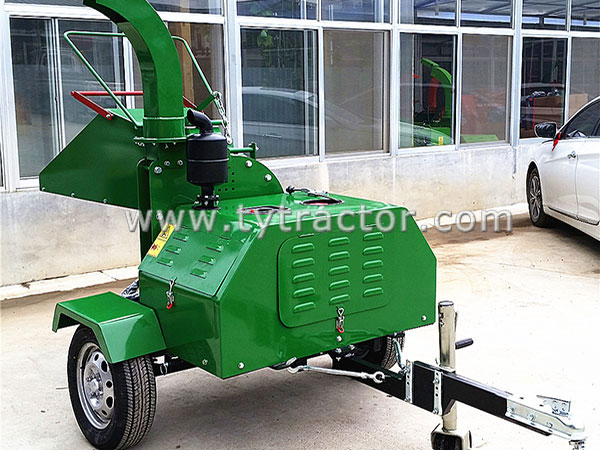

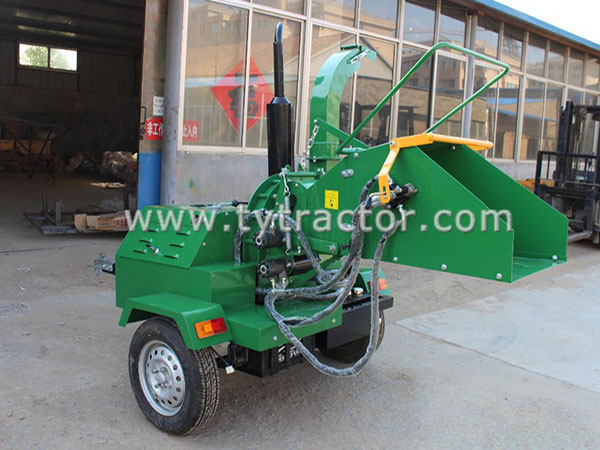

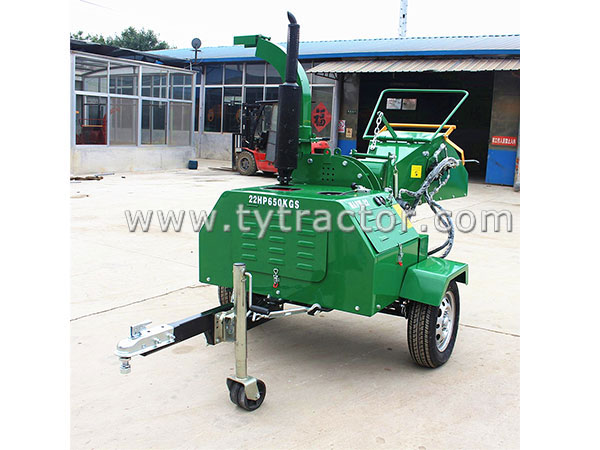

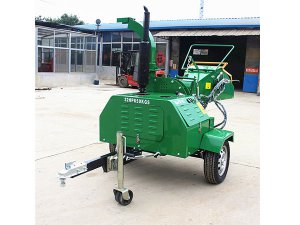

DH22 Wood Chipper, 22HP Diesel Engine Diesel Engine Wood Chipper

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

DH22 Wood Chipper Series

MODEL	WC-22DH
Max. Dia. of Feeding	8 inch
Power	Diesel 1115(22hp,1 Cylinder,2000rpm)
Flywheel Diameter	600mm
Flywheel Turning Speed	1025rpm
Feeding System	Hydraulic Feeding, Adjustable Speed Stop-reverse-forward function	REDUCTION BOX FEEDING Only forward function
BLADE QUANTITY	2 OR 4(NOT TO BE RECOMMENDED)
SAWDUST MEASUREMENT	THICKNESS<4mm
FEEDING OUTLET ROTATION ANGLE	360
WEIGHT	570kg
WORKING EFFICIENCY	8~9m³/h
VOLUME OF TANK	26L	/
(L×B×H)(mm) PACKAGE DIMENSIONS(L×B×H) (mm)	1350×1360×136
