Blue TY Tractor-4WD, TY Tractor with Good Quality
Go back to Catalog: 20HP-50HP Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

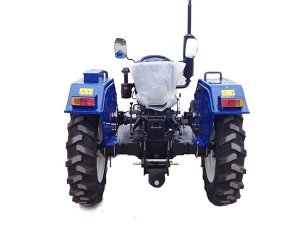

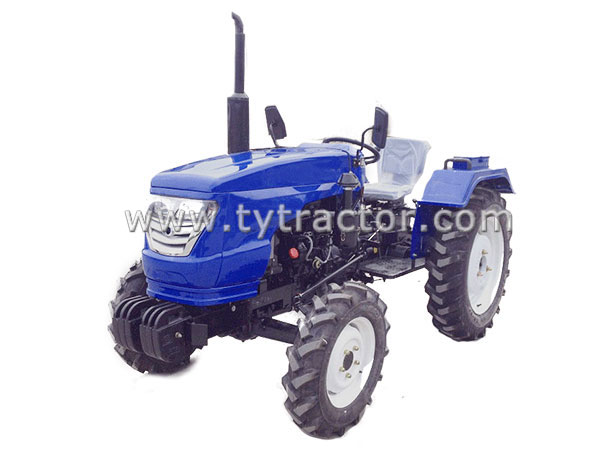

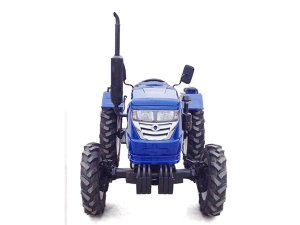

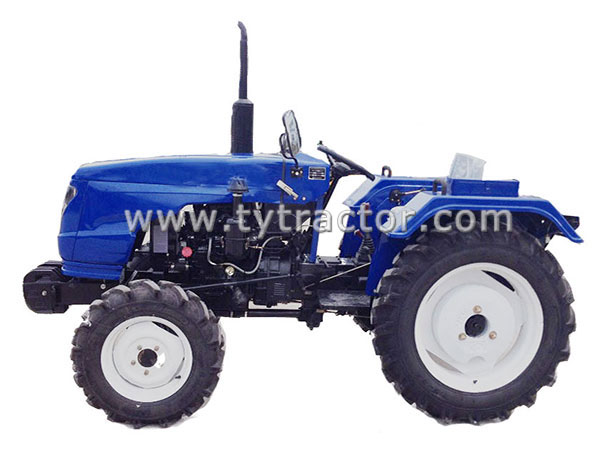

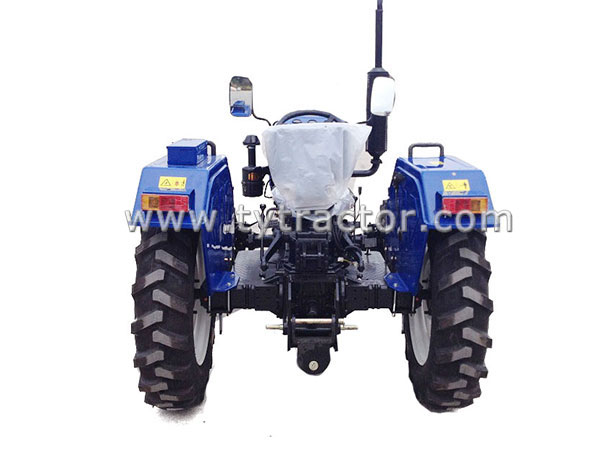

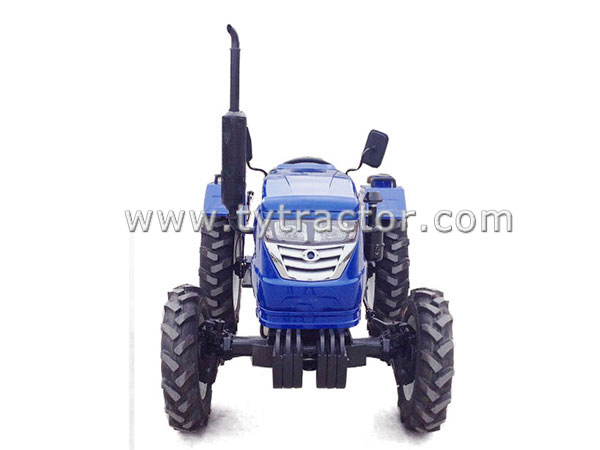

Blue TY Tractor-4WD Series
| Model | TY184 | TY204 | TY224 | TY254 | TY254 | TY284 | TY304 | TY304 | TY354 | TY354 | ||
| Type | 4WD | |||||||||||
| Horsepower | 18HP | 20HP | 22HP | 25HP | 25HP | 28HP | 30HP | 30HP | 35HP | 35HP | ||
|
Dimmensions of Tractor(mm) |
Length | 2860 | ||||||||||
| Width | 1500 | |||||||||||
| Height | 1900(top of exhaust pipe) | |||||||||||
| Tread | Front Wheel | 1200 | ||||||||||
| Rear Wheel | 1200 | |||||||||||
| Wheel Base | 1650 | |||||||||||
| Min Ground Clearance | 220 | |||||||||||
| Structure Weight(kg) | 1200 | |||||||||||
| Engine | Model | JD290IT | JD290IT | JD295IT | JD295IT | LD385 | JD2100IT | JD2102IT | LD3T30 | LD4L22BT | JD490 | |
| Type | 2-cylinder | 3-cyl | 2 Cylinder | 3 Cyl | 4 Cylinder | |||||||
| Rated Power(kw) | 13.23 | 14.7 | 16.17 | 18.37 | 18.4 | 20.58 | 22.05 | 22.05 | 25.8 | 25.8 | ||
| Rated Speed (r/min) | 2300 | |||||||||||
| Fuel | Diesel | |||||||||||
| Tyre | Front Wheel | 6.50-16 | ||||||||||
| Rear Wheel | 9.50-24 | |||||||||||
| Transmission Box | 8+2 Shift | |||||||||||
| Clutch | Single or Double stage Clutch | |||||||||||
| Steering | Mechanical or Hydraulic Steering | |||||||||||
| Hydraulic Gear Pump | Single or Double Gear Pumps | |||||||||||
| Air Brakes | Available | |||||||||||
| Cabin | Available | |||||||||||
| ROPS | Available | |||||||||||
| Canopy | Available | |||||||||||
| 4-Ways Hydraulic Valve | Available | |||||||||||
| Suspension Type | 3-point Hitch | |||||||||||
| PTO | Type and Rev | Dual Speed PTO 540/720 | ||||||||||
| Spline Size | Rectangel Spline with 6 teeth | |||||||||||
| Item | TY180 | TY200 | TY220 | TY250 | TY280 | TY300 | TY350 | |||
| Engine | ||||||||||
| Model | JD290IT | JD295IT | JD2100IT | JD2102IT | LD485 | |||||
| Rated power (KW) | 13.23 | 14.70 | 16.17 | 18.37 | 20.58 | 22.05 | 25.70 | |||
| Complete Parameter | ||||||||||
| Figure size (mm) (L×W×H) | 2600×1650×1500 | |||||||||
| Steering | Mechanical | |||||||||
| Front tyre | 5.0-16 for 2WD, 6.0-16 for 4WD | |||||||||
| Rear tyre | 8.3-24 for 2WD, 9.5-24 for 4WD) | |||||||||
| Transmission | ||||||||||
| Clutch | Dry-friction, single stage | |||||||||
| Transmission box | (3+1)*2 or (4+1)*2 | |||||||||
| Hydraulic pressure raiser | ||||||||||
| P. T. O. | ||||||||||
| Type | Rear positioned, dependent, I 35 type, 6 teeth 540 / 540/1000 or 540/720 | |||||||||
| Spline size |
F35 Rectangle spline with 6 teeth |
|||||||||
