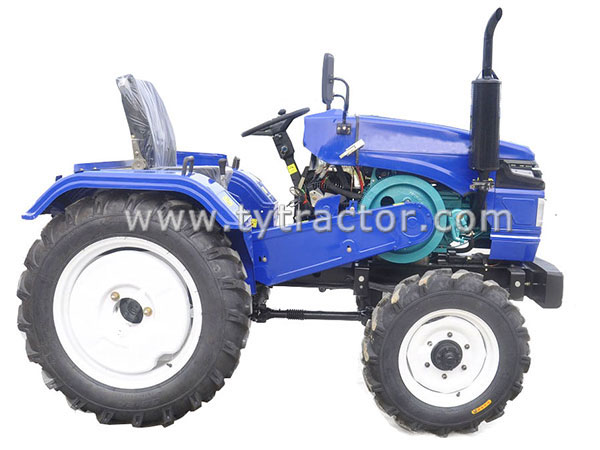

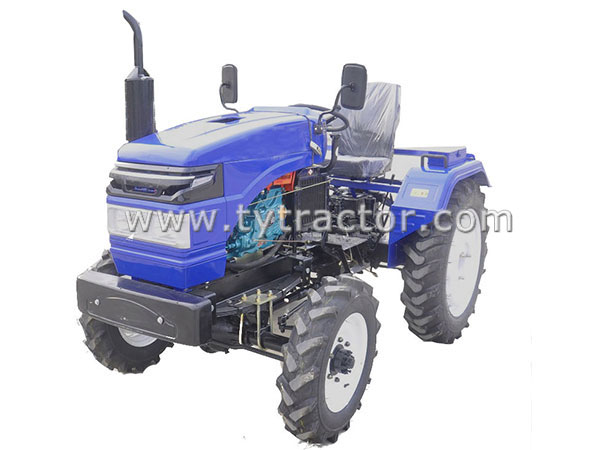

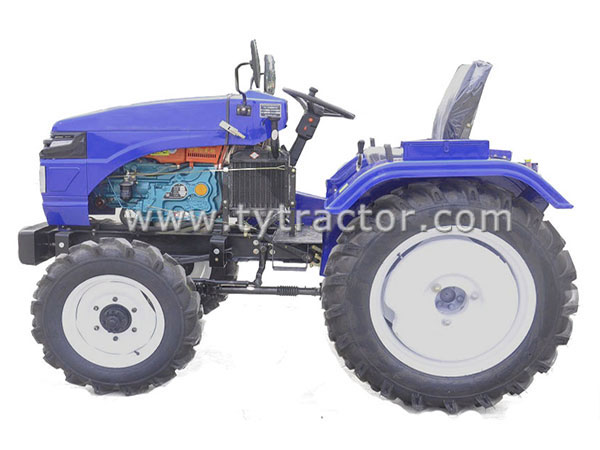

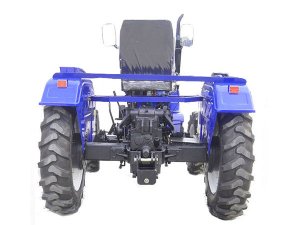

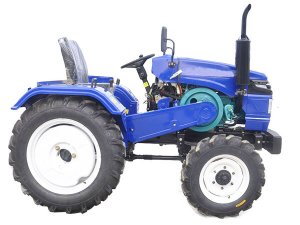

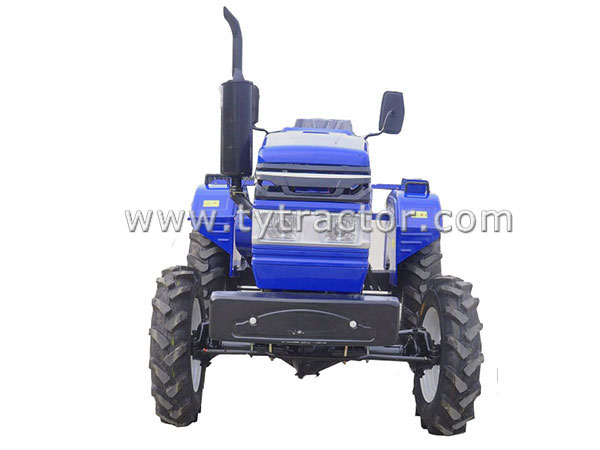

Blue Belt Tractor-4WD, Hydraulic Steering ,Double Gear Pumps Belt Tractor
Go back to Catalog: 20HP-50HP Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Blue Belt Tractor-4WD Series
| Model | 184 | 204 | 224 | 254 | 284 | 304 | 354 | ||||
| Type | 4WD | ||||||||||
| Housepower | 18 | 20 | 22 | 24 | 26 | 28 | 30 | ||||
|
Dimmensions of Tractor(mm) |
Length | 2860 | |||||||||
| Width | 1500 | ||||||||||
| Height | 1900(top of exhaust pipe) | ||||||||||
| Tread | Front Wheel | 1200 | |||||||||
| Rear Wheel | 1200 | ||||||||||
| Wheel Base | 1650 | ||||||||||
| Min Ground Clearance | 220 | ||||||||||
| Structure Weight(kg) | 1380 | ||||||||||
| Engine | Model | LD1110ED | L1115ED | LD130ED | LD138ED | LD28ED | LD30ED | LD33ED | LD35ED | ||
| Type | 1-cylinder 2WD 4WD | 1-cylinder | 1-cylinder | 1-cylinder | 1-cylinder | ||||||
| Rated Power(kw) | 13.23 | 14.7 | 16.17 | 18.37 | 18.4 | 20.58 | 22.05 | 25.8 | |||
| Rated Speed (r/min) | 2300 | ||||||||||
| Fuel | Diesel | ||||||||||
| Tyre | Front Wheel | 6.50-16 | |||||||||
| Rear Wheel | 9.50-24 | ||||||||||
| Transmission Box | 8+2 Shift | ||||||||||
| Clutch | Single Clutch | ||||||||||
| Steering | Mechanical or Hydraulic Steering | ||||||||||
| Hydraulic Gear Pump | Single or Double Gear Pumps | ||||||||||
| Air Brakes | Available | ||||||||||
| Cabin | Available | ||||||||||
| Rops | Available | ||||||||||
| Canopy | Available | ||||||||||
| 4-Ways Hydraulic Valve | Available | ||||||||||
| Suspension Type | 3-point Hitch | ||||||||||
| PTO | Type and Rev | Dual Speed PTO 540/720 | |||||||||
| Spline Size | Rectangel Spline with 6 teeth | ||||||||||
