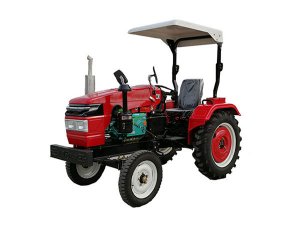

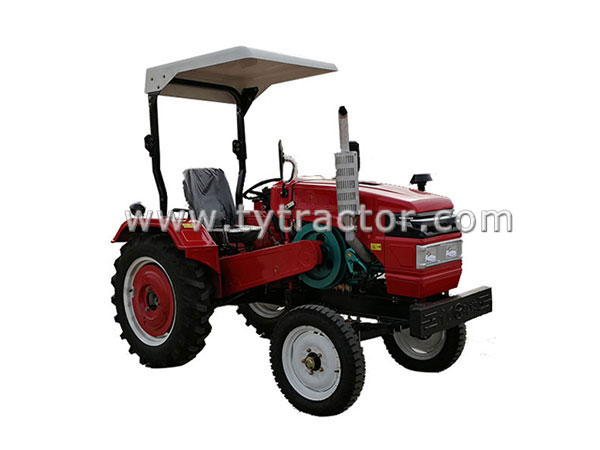

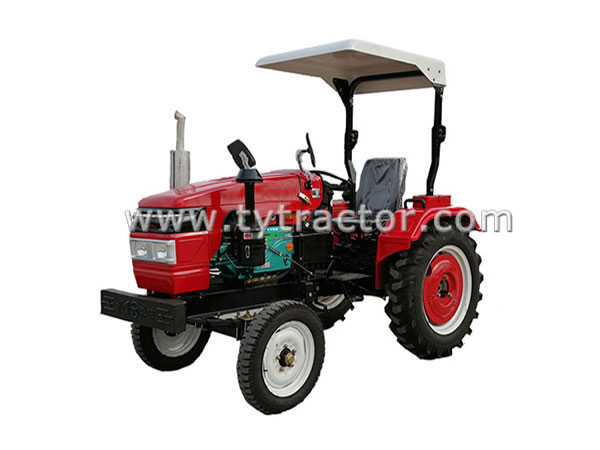

Belt Tractor with Sunshade, Belt Drive Tractor with Canopy
Go back to Catalog: 20HP-50HP Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Belt Tractor with Sunshade Series
. The assembly technical parameters
2. Theoretical speed （km/h）
a.(8+2 shift)
b.(6+1 shift)
3. Engines
. The assembly technical parameters
|
Model |
150 | 170 | 180 | 200 | 220 | |
|---|---|---|---|---|---|---|
| Drive type | 4×2WD | |||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 |
2670/2730/2810 |
2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 |
|
||||
| Structure weight(Kg) | 750/ | 750~875 | 920~1100 | |||
| Model | 244 | 264 | 284 | 304 | |
|---|---|---|---|---|---|
| Drive type | 4×2WD | ||||
| Rated traction (N) | 4050 | 4165 | 4250 | 4350 | |
|
Dimesions (mm) |
L | 2830/2890/2950 | |||
| W | 1160/1420/1520 | ||||
| H | 1732/1745/1783/1795 | ||||
| Wheel base (mm) | F | 900/1140/1240 | |||
| R | 960/1200/1300 | ||||
| Track base (mm) | 1382/1540 | ||||
| Ground clearance (mm) | 295/340 | ||||
| Steering radius (m) | 2.8／3.0（wide track）±0.2 | ||||
| Structure weight(Kg) | 920~1200 | ||||
2. Theoretical speed （km/h）
a.(8+2 shift)
| Tyre specifications | 7.5-20 | 8.3-24 | 9.5-20 | 9.5-24 | |||||||||
| L SpeedⅠ | 2.80 | 3.05 | 2.87 | 3.15 | |||||||||
|
L Speed Ⅱ |
4.60 | 5.04 | 4.74 | 5.21 | |||||||||
| L Speed Ⅲ | 6.58 | 7.20 | 6.74 | 7.42 | |||||||||
| L Speed Ⅳ | 10.28 | 11.24 | 10.67 | 11.73 | |||||||||
| H Speed Ⅰ | 7.86 | 8.59 | 8.00 | 8.80 | |||||||||
| H Speed Ⅱ | 12.91 | 14.11 | 13.25 | 14.57 | |||||||||
| H Speed Ⅲ | 18.45 | 20.17 | 19.21 | 21.12 | |||||||||
| H Speed Ⅳ | 28.82 | 31.51 | 29.55 | 32.49 | |||||||||
| Reverse Ⅰ | 3.71 | 4.06 | 3.8 | 4.18 | |||||||||
| Reverse Ⅱ | 10.40 | 11.37 | 10.67 | 11.73 | |||||||||
b.(6+1 shift)
| Tyre | 7.5-16 | 7.5-20 | 8.3-24 | 9.5-20 | 9.5-24 |
| Speed I | 2.20 | 2.48 | 2.71 | 2.54 | 2.80 |
| Speed II | 5.14 | 5.77 | 6.31 | 5.91 | 6.50 |
| Speed III | 6.92 | 7.77 | 8.49 | 8.00 | 8.80 |
| Speed IV | 8.11 | 9.11 | 9.96 | 9.37 | 10.30 |
| Speed V | 16.12 | 18.11 | 19.8 | 18.29 | 20.11 |
| Speed VI | 26.65 | 28.82 | 31.51 | 29.55 | 32.49 |
| Reverse I | 5.30 | 5.95 | 6.50 | 6.10 | 6.70 |
3. Engines
| Ref. | Model |
Rated power KW |
Retaed speed r/min |
Type |
Fuel consumption （g/rw.h） |
| 154 | LD1100 | 11 | 2200 | Single-cylinder, horizontal, four-stroke, direct injection | ≤262.5 |
| ZS1100 | 11 | ≤238 | |||
| S1100 | 11.03 | ≤246.2 | |||
| 174 | LD1105 | 12.1 | ≤238 | ||
| ZS1105 | 12.1 | ≤238 | |||
| ZH1105 | 13.13 | ≤247.5 | |||
| SD1105 | 12.1 | ≤250.2 | |||
| 184 | LD1110 | 13.2 | ≤242 | ||
| ZS1110 | 13.2 | ≤238 | |||
| ZH1110 | 13.24 | ≤244.8 | |||
| SD1110 | 13.2 |
≤250.2 |
|||
|
204 |
LD1115 | 14.7 | ≤242 | ||
| ZS1115 | 14.7 | ≤238 | |||
| ZH1115 | 14.71 | ≤242.1 | |||
| LC1115 | 14.7 | ≤250.2 | |||
| TC1115 | 14.7 | ≤250.2 | |||
|
224 |
KM130 | 16.2 | ≤242 | ||
| LD24 | 15.44 | ≤242 | |||
| JD118 | 15.44 | ≤242.1 | |||
| LC130 | 16.2 | ≤250.2 | |||
| JL128 | 16.2 | ≤250.2 | |||
|
244 |
KM138 | 17.6 | ≤242 | ||
| LC138 | 17.6 | ≤250.2 | |||
| LC24 | 17 | ≤250.2 | |||
|
264 |
LD28 | 18.38 | ≤252 | ||
| KM160 | 19.12 | ≤242 | |||
| LC26 | 18.38 | ≤250.2 | |||
| LC28 | 19.12 | ≤250.2 | |||
| ZH1125E | 18.38 | ≤240.7 | |||
| 284 | LC30 | 20.58 | ≤250.2 | ||
| 304 | KM173 |
22.06 |
≤242 |
