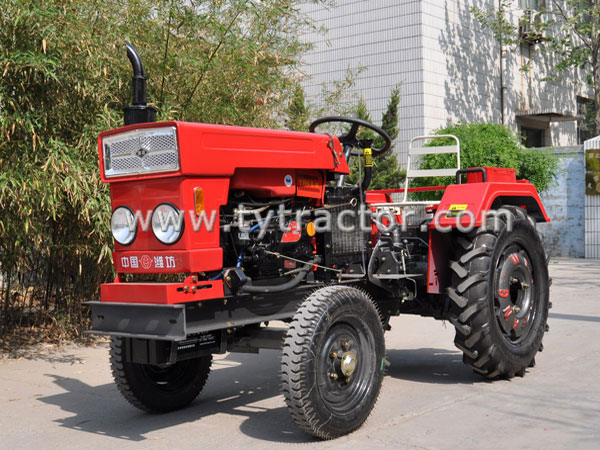

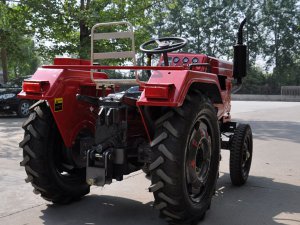

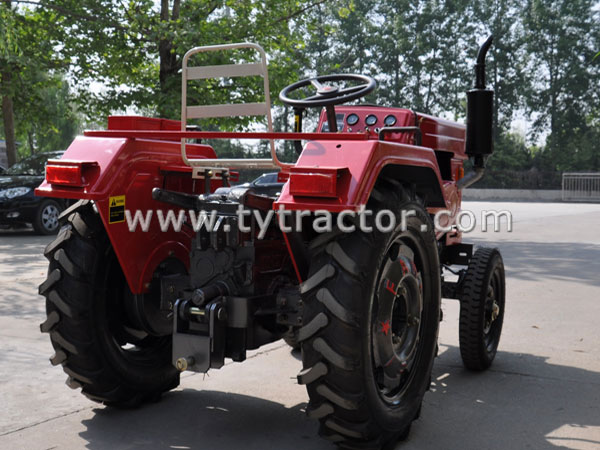

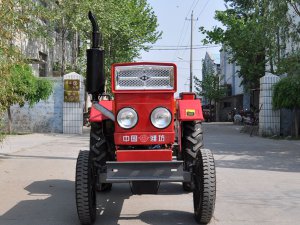

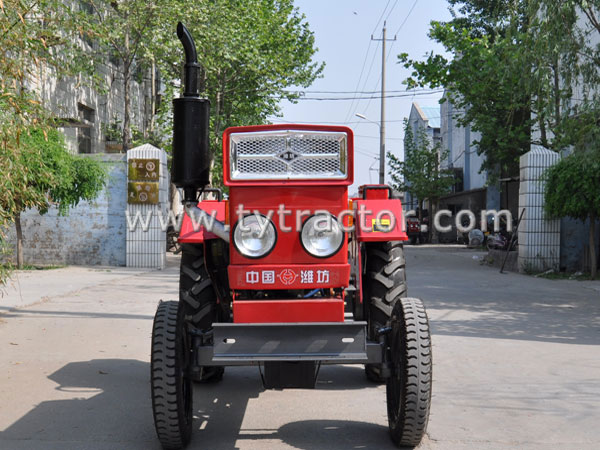

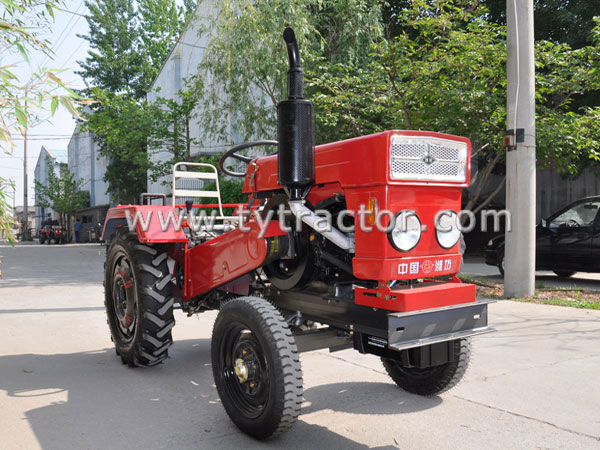

Belt Tractor F8+R2 Gear Shift, with PTO Output 540 RPM
Go back to Catalog: Belt Drive Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Belt Tractor F8+R2 Gear Shift Series
| MODEL | B240D |
| Horsepower&Drive Type | 24hp, 4×2 |
| ENGINE | |
| Engine Model | KM138 |
| Starting System | Electrical Starting |
| TRACTOR PARAMETER | |
| Dimension L*W*H (mm) | 2700*1170*1950 |
| Wheel Base (mm) | 1450 |
| Wheel Tread F/R(mm) | 900/960 |
| TRANSMISSION | |
| Gear Shift | 8F+2R |
| RUNNING SYSTEM | |
| Tire F/R | 4.50-14/7.50-20 |
| Steering | Mechanical Steering |
| Brake | Toe Type |
| Park Brake | Latch Pedal |
| WORKING SYSTEM | |
| Hitch | 3-Point hydraulic hitch，Category 0 |
| Max. Lift Force(N) | ≥3812 |
| PTO Shaft Type | Rear Non-independent, Rectangle Spline, 6 Teeth |
| PTO Rotation Speed(rpm) |
540rpm |
