8HP,10HP,12HP Walking Tractor, Two Wheel Walking Tractor, Hand Tracor
Go back to Catalog: Walking Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

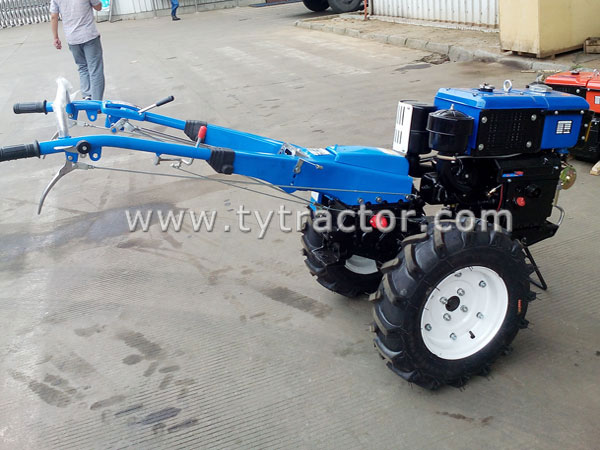

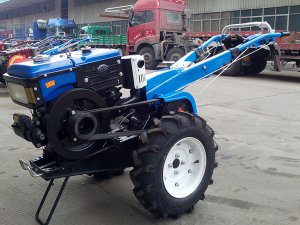

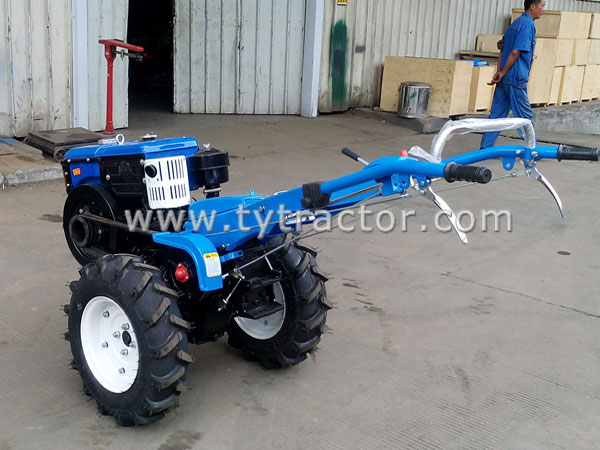

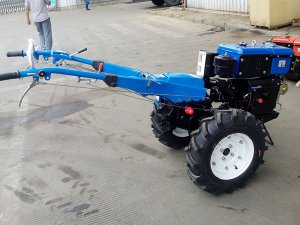

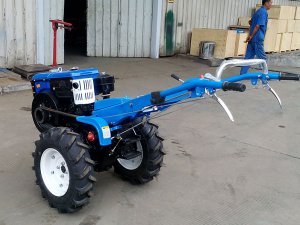

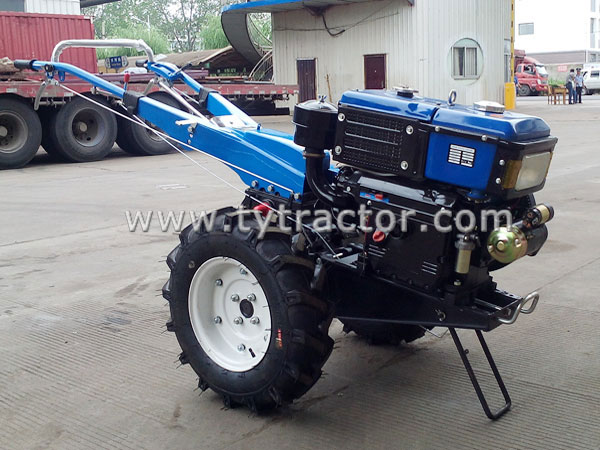

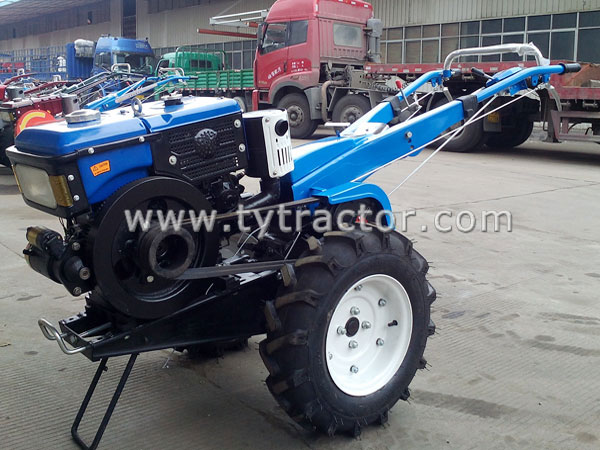

8HP,10HP,12HP Walking Tractor Series
| Pecifications of Walking Tractor | ||||||
| Engine Power | 8HP | 10HP | 12HP | 15HP | 18HP | 20HP |
| Dimension | 2170×845×1150mm | 2200×1250×1220mm | ||||
| Wheelbase | 680~740mm | 680~1000mm | ||||
| Minimum ground dearance | 210mm | 260mm | ||||
| Minimum weight | 410kg | 430kg | 450kg | 530kg | 540kg | 560kg |
| Driving wheel weight | 60kg | 140kg | ||||
| Engine model | Single cylinder, water cooled, horizontal | |||||
| Clutch | Dry, dual-disc, friction | |||||
| Gearbox | A main gearbox and a auxiliary gearbox, 6 forward gears, 2 reverse gears | |||||
| Fuel capacity | 11L | 13L | ||||
| Engine lube capacity | 2L | 3L | ||||
| Gearbox lube capacity | 3.16L | 4.3L | ||||
| Cooling water capacity | 13L | 15L | ||||
| startup mode | Hand start | |||||
