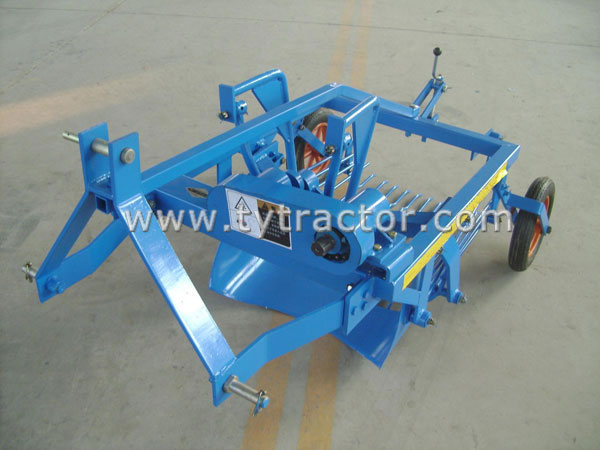

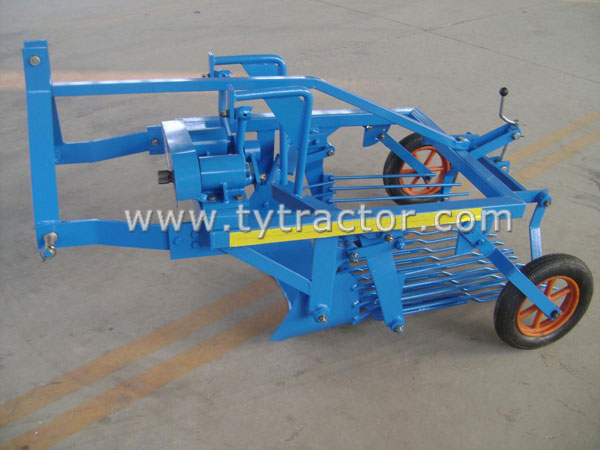

4UD Potato Harvester, Tractor 3 Point Potato Harvester
Go back to Catalog: Potato Planter & Digger
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
4UD Potato Harvester Series
4U Series potato harvester are suitable for potates,sweet potatoes,garlic and other root crops,it is composed of components such as cutting and seeding organization,field wheels,girders,excavating a shovel,transporting chains,choosing sieve,they can integraly complete the working procedures such as harvesting,excavating ,choosing,the series include the middle drive transmission and the left-side drive transmission for different types of tractors.
4U Series potato harvester are suitable for potates,sweet potatoes,garlic and other root crops,it is composed of components such as cutting and seeding organization,field wheels,girders,excavating a shovel,transporting chains,choosing sieve,they can integraly complete the working procedures such as harvesting,excavating ,choosing,the series include the middle drive transmission and the left-side drive transmission for different types of tractors.
| Type | 4UD-1 | 4U-1 | 4U-2 |
| Overall dimensions (L×W×H) (cm) | 240×90×100 | 240×100×100 | 280×220×100 |
| Weight(kg) | 180 | 220 | 600 |
| Rows | 1 | 1 | 2 |
| Space of rows | 55-80 | ||
| Productivity(ha/h) | 0.2-0.33 | 0.2-1.33 | 0.33-0.54 |
| Working depth (cm) | 20-35 | ||
| Working width (mm) | 600 | 850 | 1650 |
| Netrate of harvesting | 97% | ||
| PTO speed (RPM) | 540/760 | ||
| Linkage | three-point mounted | ||
| Matched Power(kw) | 11-22 | 11-22 | 25.7-36.7 |
