404 Tractor
  • 404 Tractor
  • 40HP Tractor

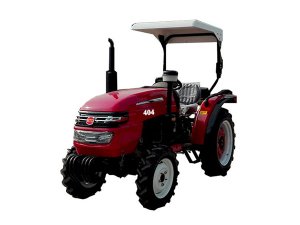

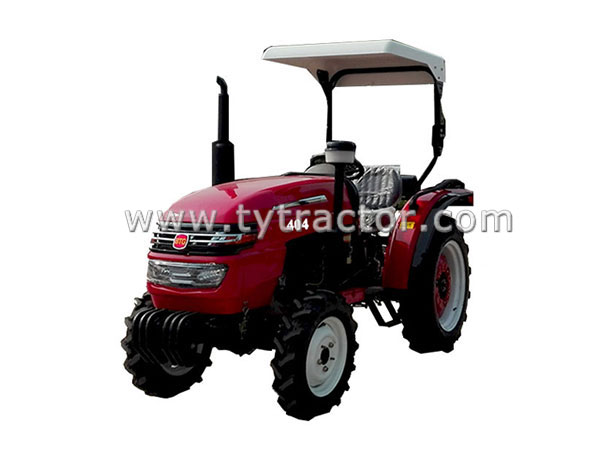

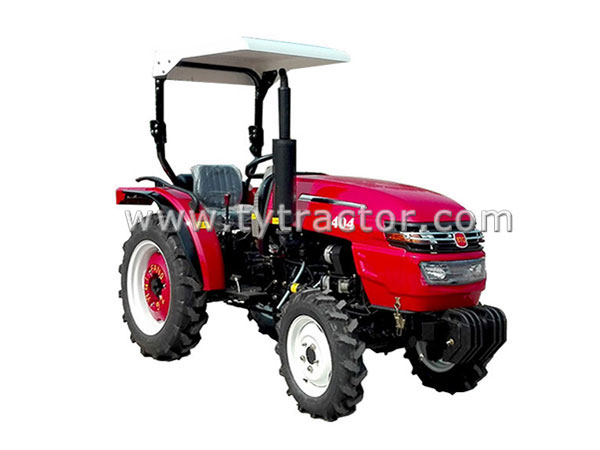

404 Tractor, 40HP Tractor, 4WD Tractor with Sunshade

Go back to Catalog: 20HP-50HP Tractor

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

Contact Us
404 Tractor Series
404 Tractor Specifications
 Model 404
Type 4*4
(mm)Dimensions of tractor Length 2900
Width 1560
 Height 1896
Tread Front Wheel 1200
Rear Wheel 1200
WheelBase 1690
Min.GroundClearance 300
(kg)Dry Mass 1350
Engine Model LD4L23/YTO490
Type Vertical Water Cooledand 4-stroke
(kw)Rated Power 29.4
(r/min)Rated Rev. 2400
Fuel  Diesel  Oil
Tire FrontWheel 6.50-16
Rear Wheel 9.50-24/11.2-24
 Clutch  Dry-friction,single stage or Dry-friction,Two Stage
Steering Mechanical Type or Hydraulic Type
Transmission Box (4+1)x  2
Suspension Type Rear three-point suspension Class I
PTO shaft (r/min)Type and Rev   540/760
SplineSize    I38 Rectangle Spline With 8 teeth (8×28.91×38×8.69)
Structure and specification are subject to change without notice.
