3ZT Cultivator, Tractor 3 Point Cultivator, Cultivating Machine
Go back to Catalog: Cultivator
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

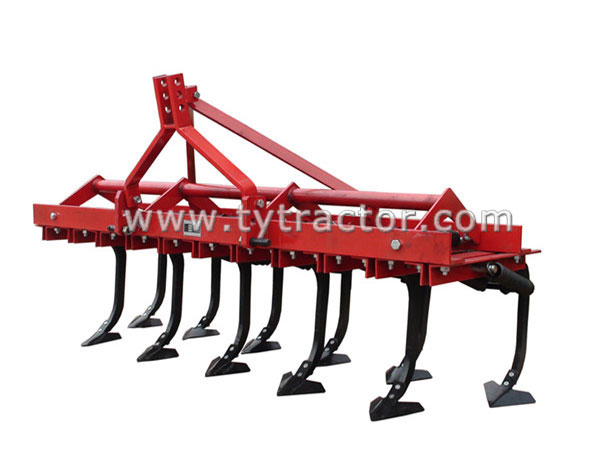

3ZT Cultivator Series
3ZT Cultivator,which is suitable for field inter tillage operation in corn ,cotton and potato fields,can complete various field operations at one time including inter-tillage,subsoiling,ditching,ridging,etc. the machine has the advantages of convenient row pitch adjustment ,large range of application,etc.
3ZT Cultivator,which is suitable for field inter tillage operation in corn ,cotton and potato fields,can complete various field operations at one time including inter-tillage,subsoiling,ditching,ridging,etc. the machine has the advantages of convenient row pitch adjustment ,large range of application,etc.
| Model | unit | 3ZT-1.2 | 3ZT-1.5 | 3ZT-1.8 | 3ZT-2.2 | 3ZT-2.5 | 3ZT-3.0 |
| Working width | mm | 1200 | 1500 | 1800 | 2200 | 2500 | 3000 |
| Working depth | mm | 100-200 | |||||
| No. of plough body | 5 | 7 | 9 | 11 | 13 | 15 | |
| Overall dimensions | mm | 1010*900*1100 | 1400*900*1100 | 1860*900*1200 | 2270*900*1200 | 1400*900*1100 | 1860*900*1200 |
| Total weight | kg | 200 | 280 | 350 | 450 | 550 | 640 |
| Matched power | hp | 20-35 | 30-45 | 40-65 | 60-70 | 70-80 | 80-100 |
| Linkage | Three-point mounted | ||||||
