3Z Disc Ridger, Tractor 3 Point Disc Ridger, Agricultural Ridger
Go back to Catalog: Ridger
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

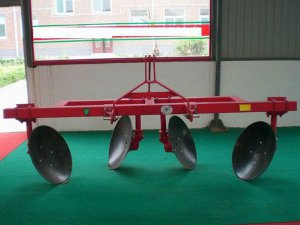

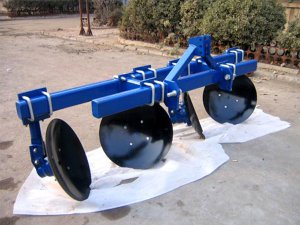

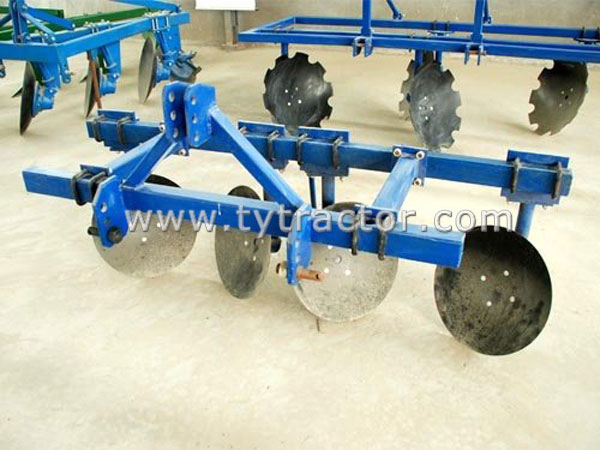

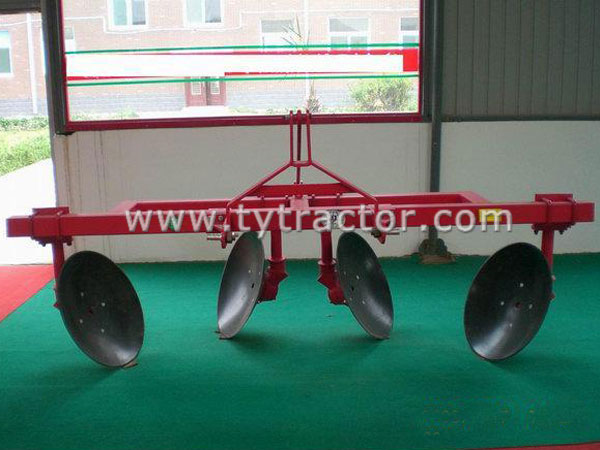

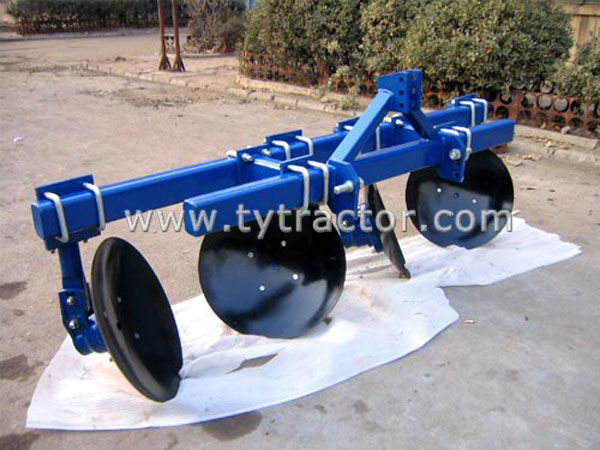

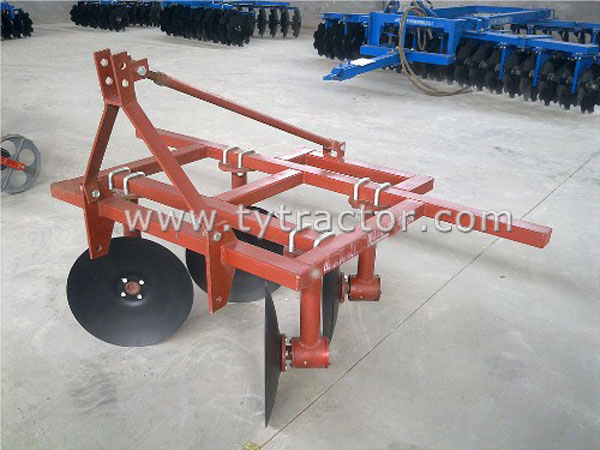

3Z Disc Ridger Series
3Z Disc Ridger
3Z Disc Ridger
Product Description:
Technique parameter:
3Z series of Disc Ridger consists of heavy duty tubular box frame, 3 point hitch system and discs. It is used for making irrigation banks for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions.
• The discs are adjustable along the frame to vary bund width and height. Also the angle between discs is adjustable.
• Can add top level plate to smooth the soil easily.
• Square Tubular Frame, stronger construction.
• Can add top level plate to smooth the soil easily.
• Square Tubular Frame, stronger construction.
| Model | Unit | 3Z-80 | 3Z-120 | 3Z-180 | 3Z-260 |
| Working width | mm | 800 | 1200 | 1800 | 2600 |
| Ridging width | mm | 200~450 | 200~450 | 300~500 | 300~500 |
| Ridging height | mm | 150~240 | 150~240 | 150~300 | 150~300 |
| Overall weight | kg | 150 | 160 | 200 | 280 |
| Matched power | hp | 20 | 25~30 | 50 | 70 |
