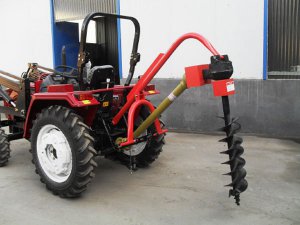

1W Post Hole Digger, Tractor 3 Point PTO Post Hole Digger
Go back to Catalog: Hole Digger
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
1W Post Hole Digger Series
1W post hole digger are constructed with heavy walled piping and sturdy gearboxes to ensure reliability no matter it’s for landscaping, farming or industrial purposes. We provide different types of post hole diggers and the auger diameters are from 300mm to 900mm.We also provide it depending on consumers’ unique requirements. The machine bit uses peculiar material composed after particular heat treatment system. It has the abilities of both sharp and able to endure. It is the best choice for tree planting, fencing or digging telegraph pole.
1W post hole digger are constructed with heavy walled piping and sturdy gearboxes to ensure reliability no matter it’s for landscaping, farming or industrial purposes. We provide different types of post hole diggers and the auger diameters are from 300mm to 900mm.We also provide it depending on consumers’ unique requirements. The machine bit uses peculiar material composed after particular heat treatment system. It has the abilities of both sharp and able to endure. It is the best choice for tree planting, fencing or digging telegraph pole.
Technique parameter:
• Hole Digger is a kind of equipment, which can drill / dig holes of various sizes and depths in soil.
• Hole Digger is used to make pits for plantation of mango, coconut, teak, pomegranate, lemon, phyllanthus embolic & sugarcane etc.
• Tractor PTO of 540 RPM mechanically drives Hole Digger Augur.

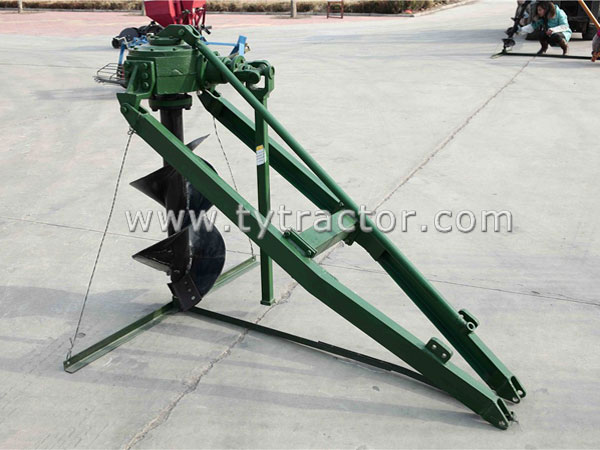

• Hole Digger consists of a stabilizer system, which keeps the augur perpendicular to the ground while in operation and controls swinging of augur while moving from one point to another point.

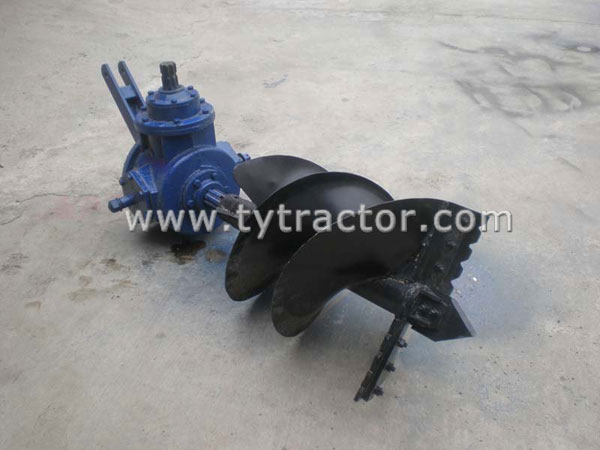

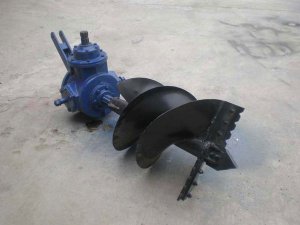

• Hole Digger Augur end points and the bending blades are made replaceable
• Heavy duty Tubular Frame
• Hole Digger is used to make pits for plantation of mango, coconut, teak, pomegranate, lemon, phyllanthus embolic & sugarcane etc.
• Tractor PTO of 540 RPM mechanically drives Hole Digger Augur.
• Hole Digger consists of a stabilizer system, which keeps the augur perpendicular to the ground while in operation and controls swinging of augur while moving from one point to another point.
• Hole Digger Augur end points and the bending blades are made replaceable
• Heavy duty Tubular Frame
| Model | 1W-30 | 1W-40 | 1W-50 | 1W-60 | 1W-70 | 1W-80 | 1W-90 | |
| Digging Diameter | mm | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| Matched Power | hp | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| Digging Depth | mm | 400~500 | 600 | 700 | 800 | 900 | ||
| Overall Weight | kg | 220 | 240 | 250 | 260 | 270 | 280 | 290 |
| Auger spiral angle | 15-20 | 15-22 | ||||||
