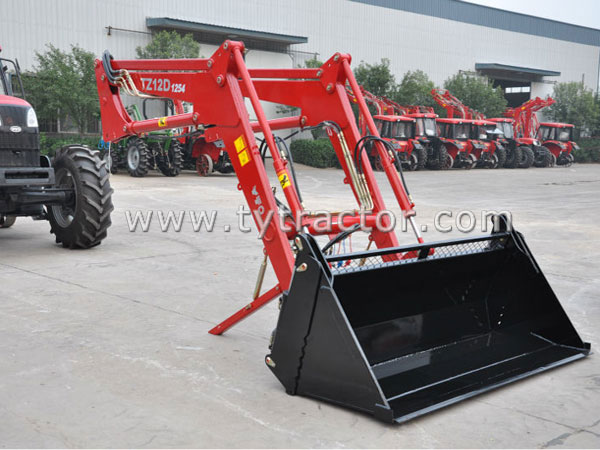

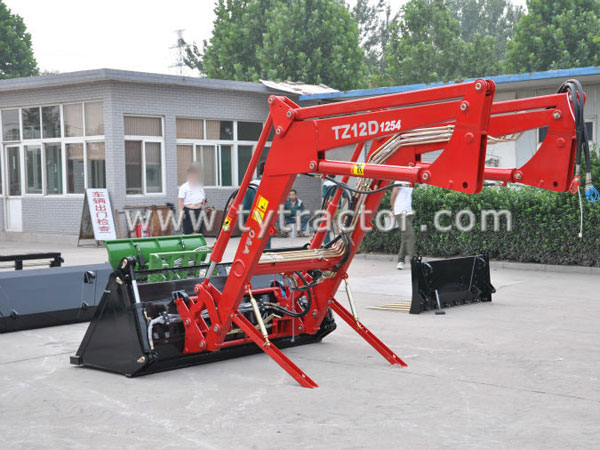

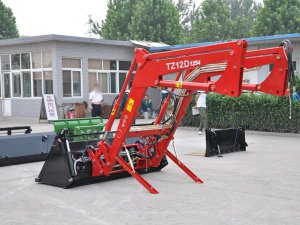

TZ12D Front End Loader, Tractor Front Loader, Loader Implements
Go back to Catalog: Front End Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
TZ12D Front End Loader Series
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage.
Specifications:
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage.
Specifications:
| Main Specifications of Front End Loader | |||||
| Model | TZ03A/B/C/D | TZ04A/B/C/D | TZ05A/B/C/D | TZ06A/B/C/D | |
| Matching Tractor | kw(hp) | 14.7~22.1(20~30) | 22.1~29.4(30~40) | 29.4~36.8(40~50) | 36.8~44.1(50~60) |
| Rated Lift Capacity | kg | 300 | 400 | 500 | 600 |
| Max. Dump Height | mm | 1800 | 2000 | 2100 | 2200 |
| Digging Depth | mm | 100 | 120 | 140 | 140 |
| Bucket Capacity | m3 | 0.18 | 0.3 | 0.35 | 0.4 |
| Dump Angle | (° ) | 42~45 | 42~45 | 42~45 | 42~45 |
| Weight | kg | 470~650 | 500~680 | 530~720 | 660~800 |
| Main Specifications of Front End Loader | |||||
| Model | TZ08A/B/C/D | TZ10A/B/C/D | TZ12A/B | TZ12C/D | |
| Matching Tractor | kw(hp) | 44.1~58.8(60~80) | 58.8~66.2(80~90) | 88.2~102.9(120~140) | 88.2~102.9(120~140) |
| Rated Lift Capacity | kg | 800 | 1000 | 1200 | 1200 |
| Max. Dump Height | mm | 2350 | 2350 | 2500 | 2500 |
| Digging Depth | mm | 180 | 180 | 200 | 200 |
| Bucket Capacity | m3 | 0.48 | 0.6 | 1 | 1 |
| Dump Angle | (° ) | 42~45 | 42~45 | 42~45 | 42~45 |
| Weight | kg | 680~830 | 800~980 | 960~1150 | 960~1150 |
