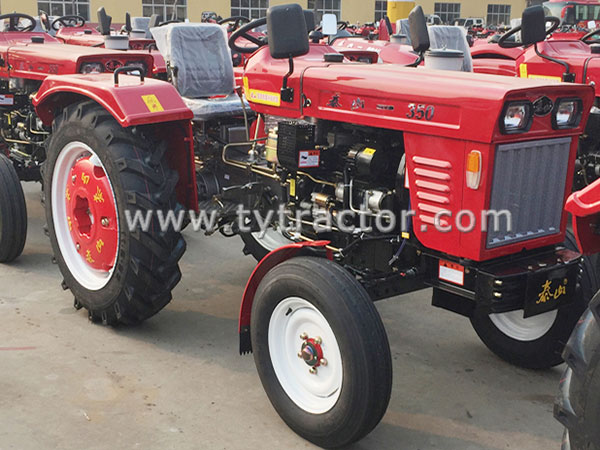

TS350 Tractor, TAISHAN TS350 2WD 35HP TRACTOR
Go back to Catalog: TS Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
TS350 Tractor Series
This tractor, which is the directly link engine type ,hans good performance in medium horsepower range. Tractor equipped with jaw differential lock , which improves tractor through ability . The set of the hydraulic output valve can be directly connecting to the tipping trailer . According to the requirements of different users ,tractor can have a variety of configurations .User can choose single acting or double action clutch ,air brake ,grassland tire ,paddy field tire ; Power output can coose single speed or double speed .Wheel track can be fixed or adjustable .
This tractor, which is the directly link engine type ,hans good performance in medium horsepower range. Tractor equipped with jaw differential lock , which improves tractor through ability . The set of the hydraulic output valve can be directly connecting to the tipping trailer . According to the requirements of different users ,tractor can have a variety of configurations .User can choose single acting or double action clutch ,air brake ,grassland tire ,paddy field tire ; Power output can coose single speed or double speed .Wheel track can be fixed or adjustable .
| Model | 350(TS) | ||
| Type | 4*2 | ||
| Dimensions of Tractor | Lenght mm | 3000 | |
| widht mm | 1460 | ||
| Height mm | 1510 | ||
| Tread | Front mm | 1200 | |
| Rear mm | 1200 | ||
| Wheel base mm | 1650 | ||
| Min.Ground Clearance mm | 370 | ||
| Dry Mass Kg | 1500 | ||
| Engine | Model | LD4TE35A | |
| Type | Vertical, water-cooled, diesel engine | ||
| Number of cylinder | 4 | ||
| Rated Power Kw(hp) | 25.7(35) | ||
| Type | Front | 650-16 | |
| Rear | 11.2-24 | ||
| Clutch | Dry-type, single-acting,Often in combination with | ||
| Steering | Mechanical steering | ||
| Gear box | (4+1)*2 | ||
| PTO r/min | 540/720 | ||
| Counterweight device | Front 6*8Kg Rear 2*20Kg | ||
