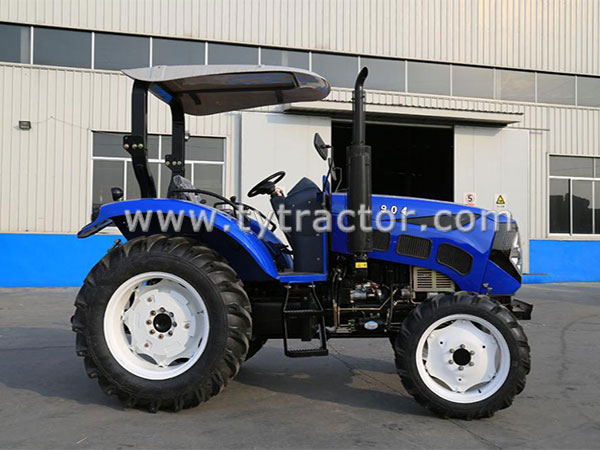

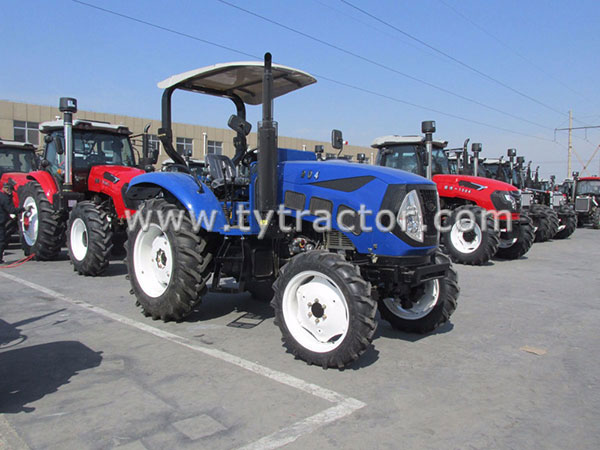

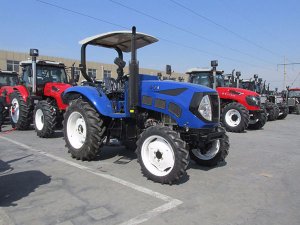

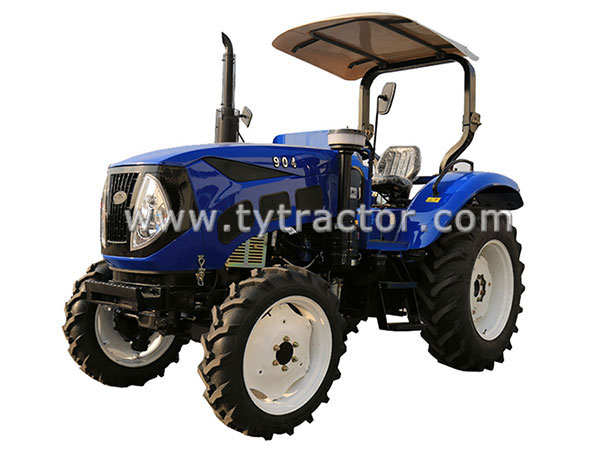

HM904 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM904 Tractor Series
Product Parameters
Product Parameters
| Model | HM504 | HM604 | HM704 | HM804 | HM904 | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | ||
|
Dimensions of Tractor (mm) |
Length | 3700 | 3700 | 3900 | 3900 | 4000 | |
| Width | 1710 | 1710 | 1795 | 1795 | 1900 | ||
| Height | 2160 | 2160 | 2300 | 2300 | 2610 | ||
| Tread | Front Wheel | 1250 | 1250 | 1300 | 1300 | 1300 | |
| Rear Wheel | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | ||
| Wheel Base | 1950 | 1950 | 2072 | 2072 | 2072 | ||
| Min. Ground Base | 325(the bottom of steering horizontal pulling rod) | 390(the bottom of steering horizontal pulling rod) | |||||
| Min. Usage Mass (kg) | 2500 | 2500 | 2700 | 2700 | 2750 | ||
| Engine | Model | quanchai495 | quanchai4105 | quanchai4108 | quanchai4108 | quanchai4110 | |
| Type | Vertical, water cooled and 4-stroke | ||||||
| Rated Power(kw) | 36.8 | 44.1 | 51.4 | 58.8 | 66.2 | ||
| Rated Rev.(r/min) | 2300 | 2400 | 2400 | 2300 | 2300 | ||
| Fuel | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | ||
| Tire | Front Wheel | 8.3-20 | 8.3-20 | 8.3-24 | 8.3-24 | 8.3-24 | |
| Rear Wheel | 12.4-28 | 12.4-28 | 14.9-30 | 14.9-30 | 14.9-30 | ||
| Clutch | dry-friction, single disc and two stage | ||||||
| Steering | Hydraulic type | ||||||
| Transmission Box | two shafts, 4×(3+3) composed | ||||||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue I | ||||||
| PTO |
Type and Rev.(r/min) |
Post-position, half-independent, 540/760 or 540/1000(optional) |
|||||
| Spline Size | I38 Rectangle Spline with 8 teeth | ||||||
