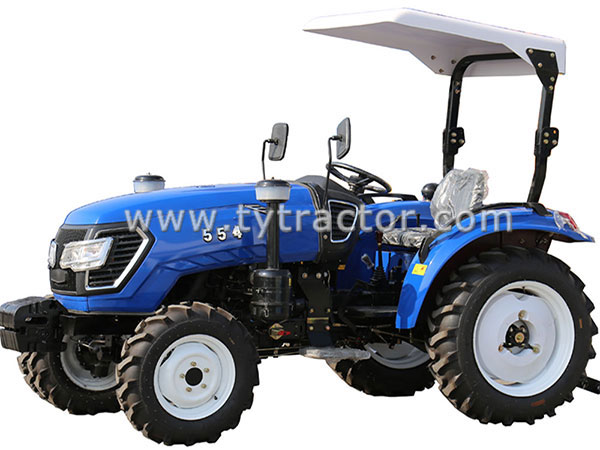

HM554 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM554 Tractor Series
Main Feature1) Direct injection diesel engine, fuel-efficient and durable good maintenance;
2) Dual stage clutch,shuttle shift optional, flat deck available,more comfortable;
3) Patent streamlined hood, beautiful appearance,various color available;
4)Optional air brake,swing draw bar,multiple function;
| HM 554 SPECIFICATION | |
| Model | HM554 |
| Drive type | 4*4 |
| Engine | |
| Engine brand | LD |
| Model | 4100 |
| Type | 4 cylinder, Water-cooling, 4 stroke |
| Rated speed (r/min) | 2400 |
| Engine power (hp) | 55hp |
| Transmission | |
| Clutch | Dry, single-stage clutch |
| PTO size | 6teeth-φ35 |
| PTO Speed(rpm) | 540/720 |
| Gear shift | 8+2 |
| Hydraulic system | |
| Hydraulic output valve | One way |
| Three point linkage | |
| Category of 3-point link | Category I |
| Technical parameter | |
| Dimension(L*W*H) mm | 3510*1510*2020mm |
| Min. operation weight | 1760kg |
| Wheel base(mm) | 1920 |
| Track base(mm) front wheel | 1200 |
| Track base(mm) rear wheel | 1200 |
| The smallest clearance(mm) | 360 |
| Front tyre | 6.0-16 |
| Rear tyre | 9.5-24 |
| Steering type | Hydraulic power steering |
Main Feature1) Direct injection diesel engine, fuel-efficient and durable good maintenance;
2) Dual stage clutch,shuttle shift optional, flat deck available,more comfortable;
3) Patent streamlined hood, beautiful appearance,various color available;
4)Optional air brake,swing draw bar,multiple function;
