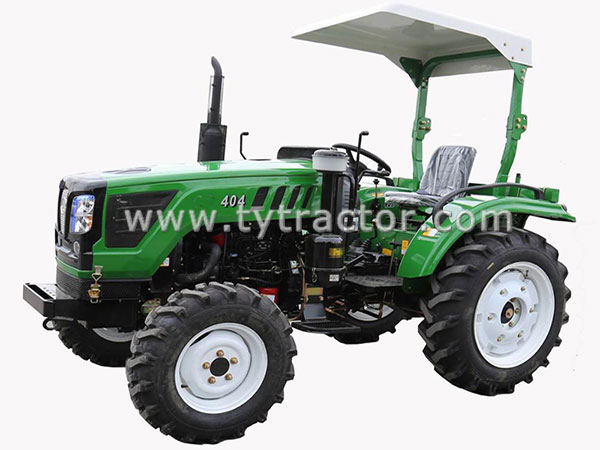

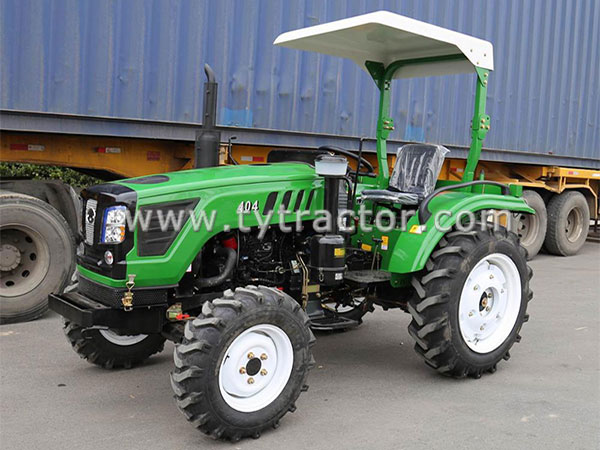

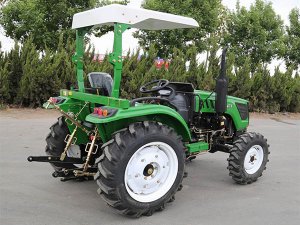

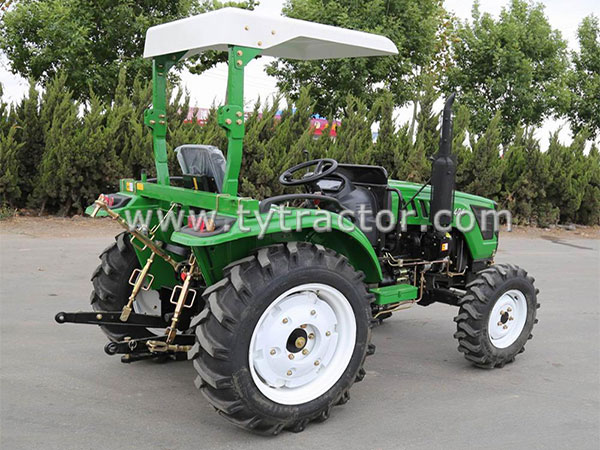

HM404 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM404 Tractor Series
| HM 404 SPECIFICATION | |
| Model | HM404 |
| Drive type | 4*4 |
| Engine | |
| Engine brand | LD |
| Model | 4L23BT |
| Type | 4 cylinder, Water-cooling, In-line, 4 stroke |
| Bore*Stroke | 88*95 |
| Rated speed (r/min) | 2300 |
| Engine power (hp) | 40hp |
| Transmission | |
| Clutch | Dry, single-stage clutch |
| PTO size | 6teeth-φ35 |
| PTO Speed(rpm) | 540/720 |
| Gear shift | 8+2 |
| Hydraulic system | |
| Hydraulic output valve | One way |

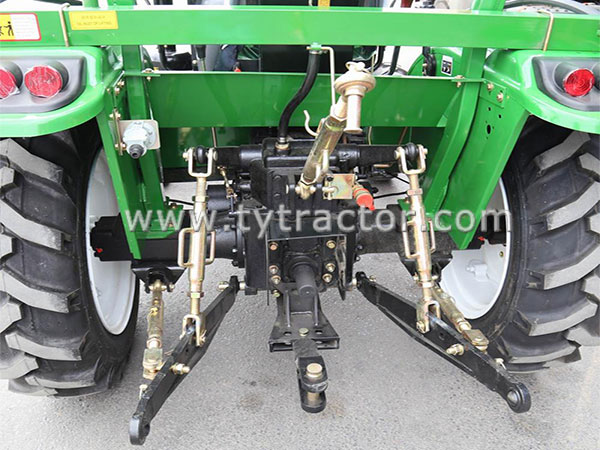

| Three point linkage | |
| Category of 3-point link | Category I |
| Technical parameter | |
| Dimension(L*W*H) mm | 3250*1500*2130 |
| Min. operation weight | 1400kg |
| Wheel base(mm) | 1750 |
| Track base(mm) front wheel | 1200 |
| Track base(mm) rear wheel | 1200 |
| The smallest clearance(mm) | 360 |
| Front tyre | 6.0-16 |
| Rear tyre | 9.5-24 |
| Steering type | Hydraulic power steering |
